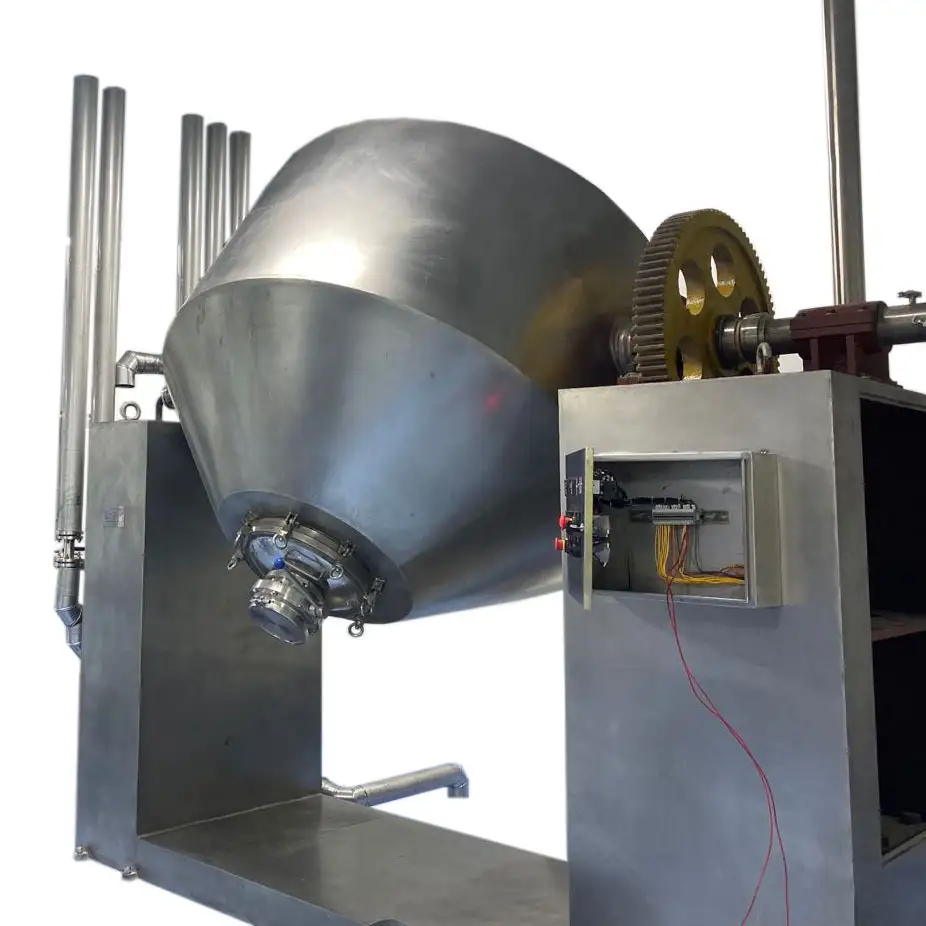

Zhanghua - Stainless Steel Industrial Continuous Automatic Double Cone Rotary Vacuum Dryer Double Cone Rotary Vacuum Dryer

As expected,Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd unveils a new product relying on our advanced technologies and industrious employees. It is Stainless Steel Industrial Continuous Automatic Double Cone Rotary Vacuum Dryer and can be legally exported to foreign countries. We can manufacture this product to your exact specifications. Thanks to our creative designers,ZHANG has the appearance which is designed to catch up with the latest industry trend. Adopting reliable raw materials which have passed the tests of our QC inspectors, Stainless Steel Industrial Continuous Automatic Double Cone Rotary Vacuum Dryer has some reliable performance.

Products Description

Double-Cone Vacuum Dryer

Material: SS304, SS316L, Titanium, Hastelloy, PTFE lined

Application: mainly applicable for drying all kinds of granular materials, such as antibiotics,crystal, in the pharmaceutical, chemical and other industries.

Main Characteristics

➤Good sealing performance: concentric degree of shaft are controlled well, both ends use mechanical sealing.

➤ Good rigidity: Both ends of the cone are welded together with the cone vessel as a whole. It is not easy to be deformed.
➤Steady transmission: The whole unit is driven by the electrical motor, reducer, big and small gears, which enables the unit run
more stably and reliably.
➤Mounted with CIP and SIP device.
➤ Design with SIP, CIP dedicated device

➤The cone angle is designed as 60° which prevents materials from pilling during rotary process, and avoids powder retention
during discharging.

➤The special design of vacuum pipes and vacuum filter increase the loading coefficient, which can even reach 65%.

➤The device includes three layers. The parts touching with materials Jacket in the middle is for hot water circulation. To prevent stainless steel and carbon steel from producing static corrosion, the jacket must be made from stainless steel, and the outer layer uses fiberglass cotton for heat preservation.

Customer Site

Pharmaceutical Industry

Technical Parameter

Specification （L）	Capacity （L）	Drive power （kw）	Rotate speed （rpm/min）	Host weight （kg）	Diathermanous area of  condensator （㎡）
20	≤10	0.55	6	300	3
50	≤25	0.55	6	450	3
100	≤50	0.75	6	820	3
...	...	...	...	...	...
18000	≤9000	30	2.2	20150	200

Our Advantage

Zhanghua VS Other	High concentricity of two axes of equipment， 20L-3000L with the concentric degree ≤ 0.16mm, 3000L-5000Lconcentricity ≤ 0.20mm,5000L - 18000L concentricity ≤0.25 mm. More stable operation, better sealing performance, longer service life
	Zhanghua VS Other	New advanced airtight technology, vacuum ≤ 030Pa, improve product quality, can be used for aseptic grade product production
	Zhanghua VS Other	Clean CIP online (if configured) to reduce labor and equipment pollution
	Zhanghua VS Other	Online sterilized SIP (if configured), capable of producing sterile products
		Online weighing system (if configured) eliminates the need for weighing after secondary material transfer to reduce labor force and improve measuring accuracy
		Polishing precision up to 0.014μm, (if configured), easy to clean equipment, prevent material sticking to the wall
		Double taper with knife (if available) to prevent pilling of sticky materials during drying
		The first in China, the double cone produced in 1978, is still in use by users, with reliable performance. With nearly 40 years of experience, it has produced no less than 1000 sets

Design / Calculation Software

You May Like

ANFD ROTARY VACUUM DRYER PADDLE DYRER VACUUM OVER

Custom Service

➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)

2. Crystallizing Tank, Reaction Kettle
3. Sterile double-cone dryer
4. Rake Vacuum Dryer/Paddle Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,

Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤scope of business
1. On-site Inspection
2. Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts
