Zhanghua - Pharmaceutical Powder Mixer Double Cone Blending Drying Machine With Blades Double Cone Rotary Vacuum Dryer

Pharmaceutical Powder Mixer Double Cone Blending Drying Machine With Blades companies spend so much time coming up with various products to reach diverse consumer needs. Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd can make your Pharmaceutical Powder Mixer Double Cone Blending Drying Machine With Blades famous and visible in the eyes of your target buyers and get a great response from them. The specifications of Pharmaceutical Powder Mixer Double Cone Blending Drying Machine With Blades can be customized according to your needs.

Products Description

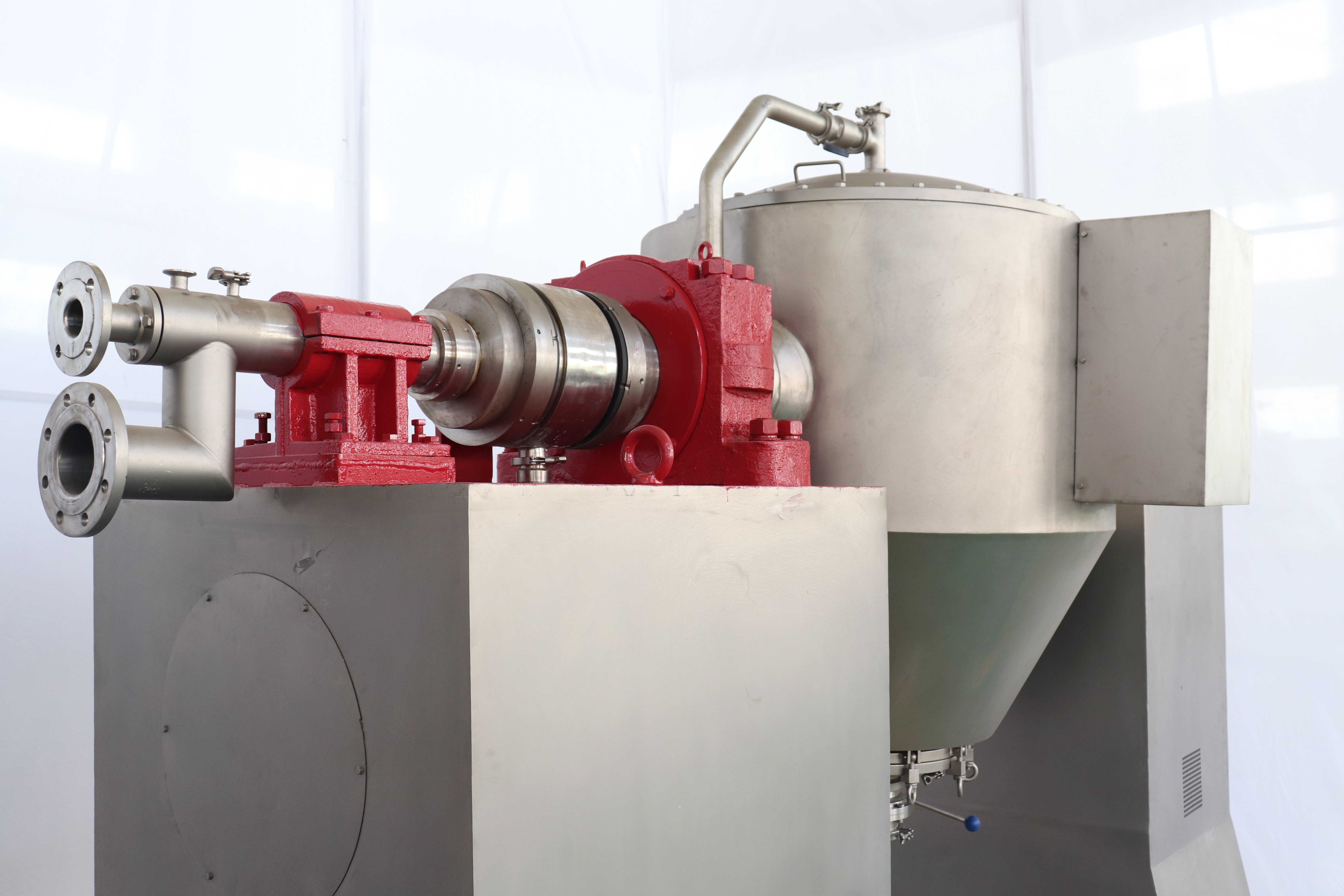

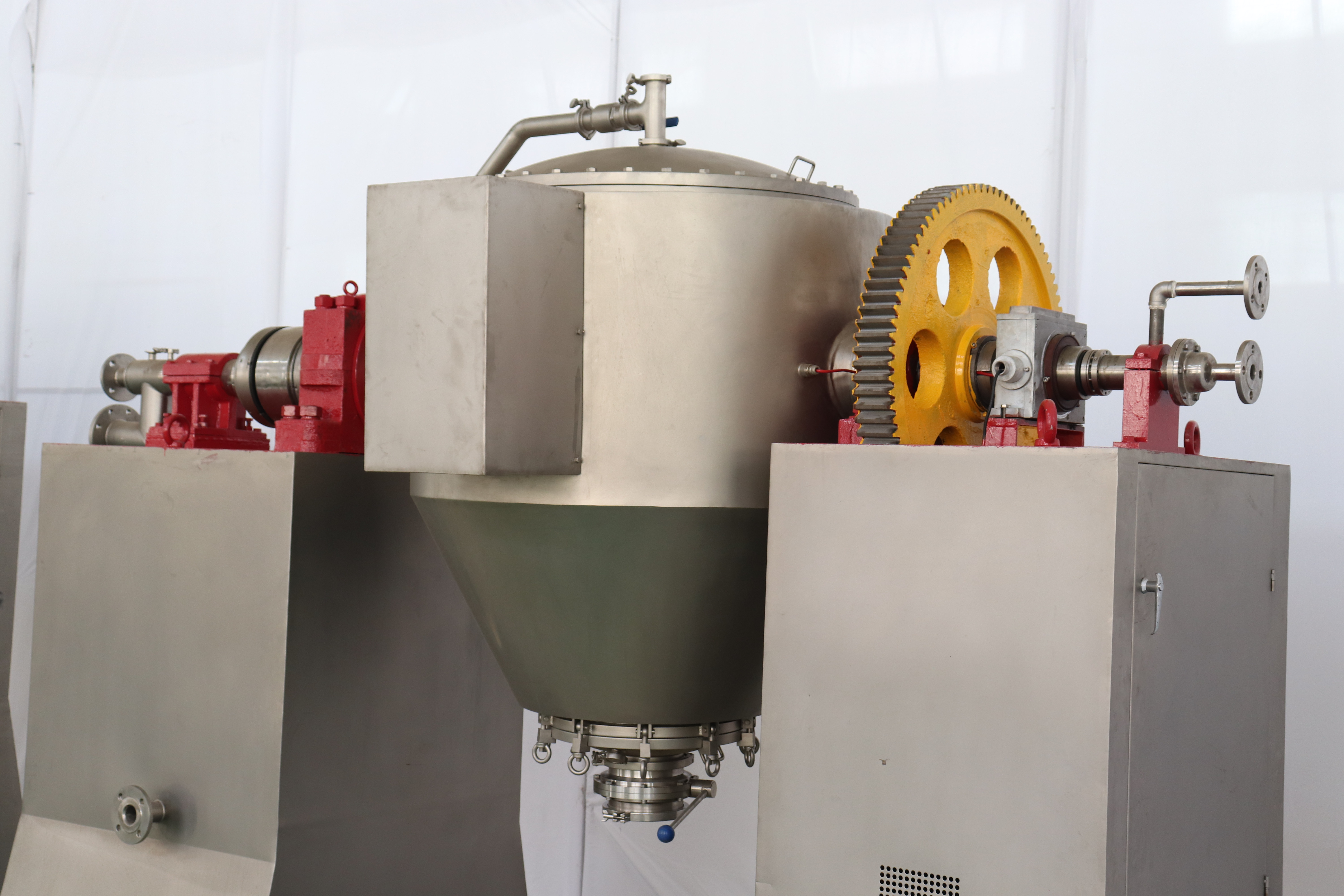

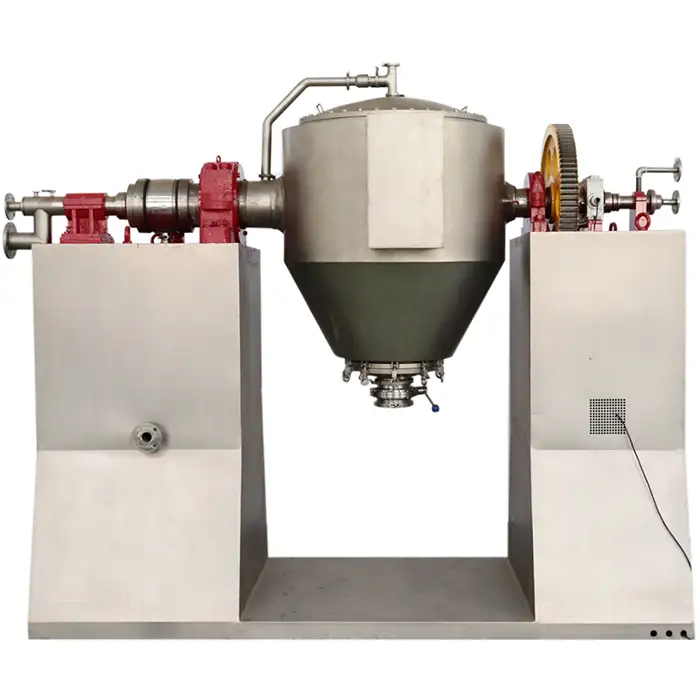

Multifunctional drying unit with blades

This unit is improved from basis of double-cone vacuum rotary dryer andadded two blades at the diagonal position of cones which can help solvethe pilling problem. It can be made from SS304, SS316L, Ti, HastelloyPTFE lined or other materials. It is a multifunctional unit with reaction,crystallization, condensing, filtering, cleaning, drying, crashing, etc. Thebiggest advantages of this unit are its multifunction, small covering area,small investment, simple operation, high efficiency, low labor strengthhigh safety, long service life, convenient installation, etc. The unit issuitable for pharmaceutical and chemical products with high additionalvaluable materials, or poisonous, flammable, explosive, little batch. It iseven applicable for the material that must meet the GMP request.

➤1. Reaction, crystallization and concentration stage

The cone with mixer is downward,Mixing form can be chosen freelyaccording to the characters of materials. The material is sent to
theequipment from loading position on the side of the equipment. Thecontinuous turning of the mixing blade makes reaction, crystallization and concentration

➤2. Filtering stage

Rotate the container for 180 degrees and turn the cone with the filteringplate downward. Connect the bottom of this cone with a
vacuum deviceand complete the separation of filter cake and mother liquid

➤3. Washing stage

After filtering, take into the lotion, then start the mixing liquid, rotate thecontainer at the same time, crash
the filter cake and purify it further bylotion, then wash the rest mother liquid and dehydrate

➤4. Drying stage

After the second filtering stage, anti-blow the container by nitrogen gasAfte through the vacuum orifice. Make the filter cake separate from the filternet Rotate the container, and in this process, let the filter cake crashedby crasher. Make the hot water circulate in the jacket to heat the wholecontainer, dry the material under the vacuum condition. Sampling inplace process is also done. The tornado separation machine can catchand gather the tiny powder while the condenser can collect organic solvent

Product Details

Technical Parameter

Total Capacity	Loading quantity	power of the lender	Rotate speed of dryer(R/min)	Area of condenser matches
500L	250L	0.75kw	0-5rpm/min	7㎡
750L	350L	0.75kw	0-5rpm/min	7㎡
1000L	350L	1.1kw	0-5rpm/min	10㎡
1200L	600L	1.1kw	0-5rpm/min	12㎡
...	...	...	..	..
10000L	5000L	1.5kw	0-3.2rpm/min	100㎡

Our Advantage

Zhanghua VS Other	High concentricity of two axes of equipment， 3000L with the concentric degree ≤ 0.16mm, 3000L-5000Lconcentricity ≤ 0.20mm,5000L - 18000L concentricity ≤0.25 mm. More stable operation, better sealing performance, longer service life
		New advanced airtight technology, vacuum ≤ 030Pa, improve product quality, can be used for aseptic grade product production
		Clean CIP online (if configured) to reduce labor and equipment pollution
		Online sterilized SIP (if configured), capable of producing sterile products
		Online weighing system (if configured) eliminates the need for weighing after secondary material transfer to reduce labor force and improve measuring accuracy
		Polishing precision up to 0.014μm, (if configured), easy to clean equipment, prevent material sticking to the wall
		Double taper with knife (if available) to prevent pilling of sticky materials during drying
		The first in China, the double cone produced in 1978, is still in use by users, with reliable performance. With nearly 40 years of experience, it has produced no less than 1000 sets

Design / Calculation Software

Custom Service

➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)

2. Crystallizing Tank, Reaction Kettle
3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Vacuum Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,
Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤Scope of business
1. On-site Inspection
2.Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts
