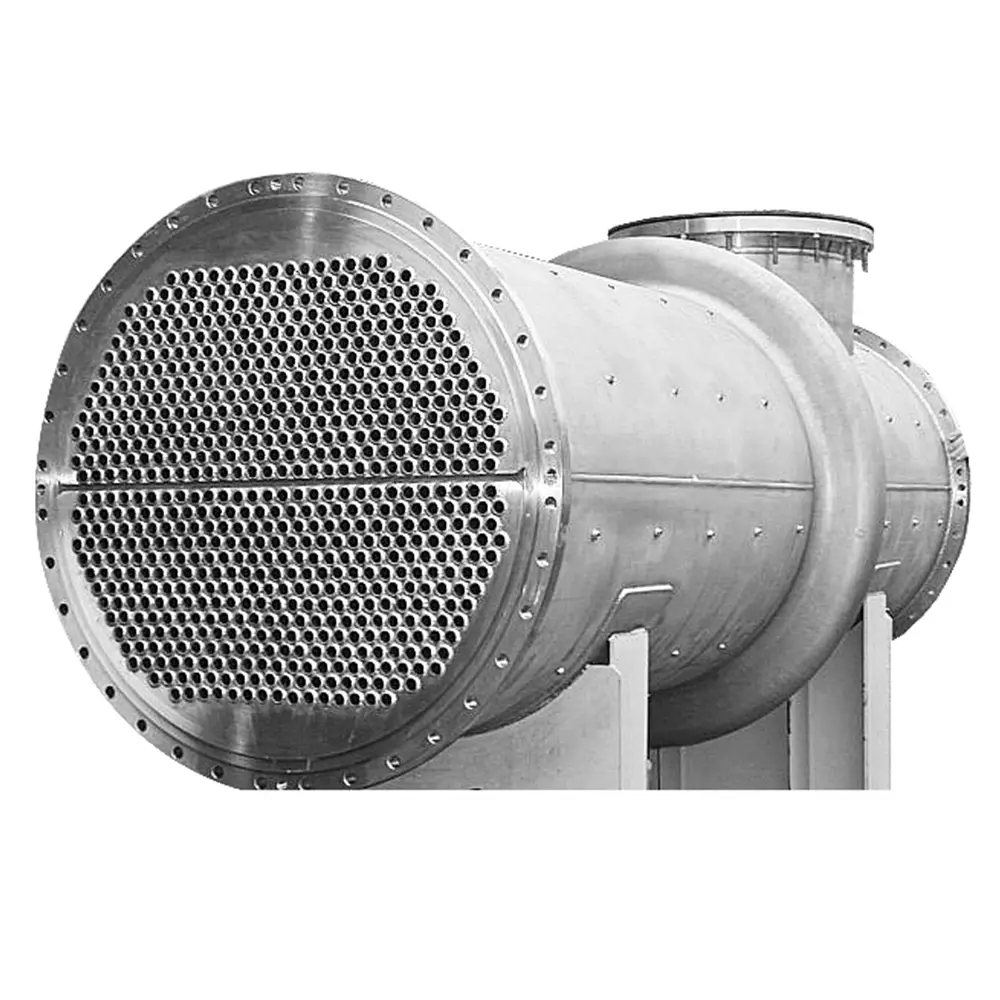

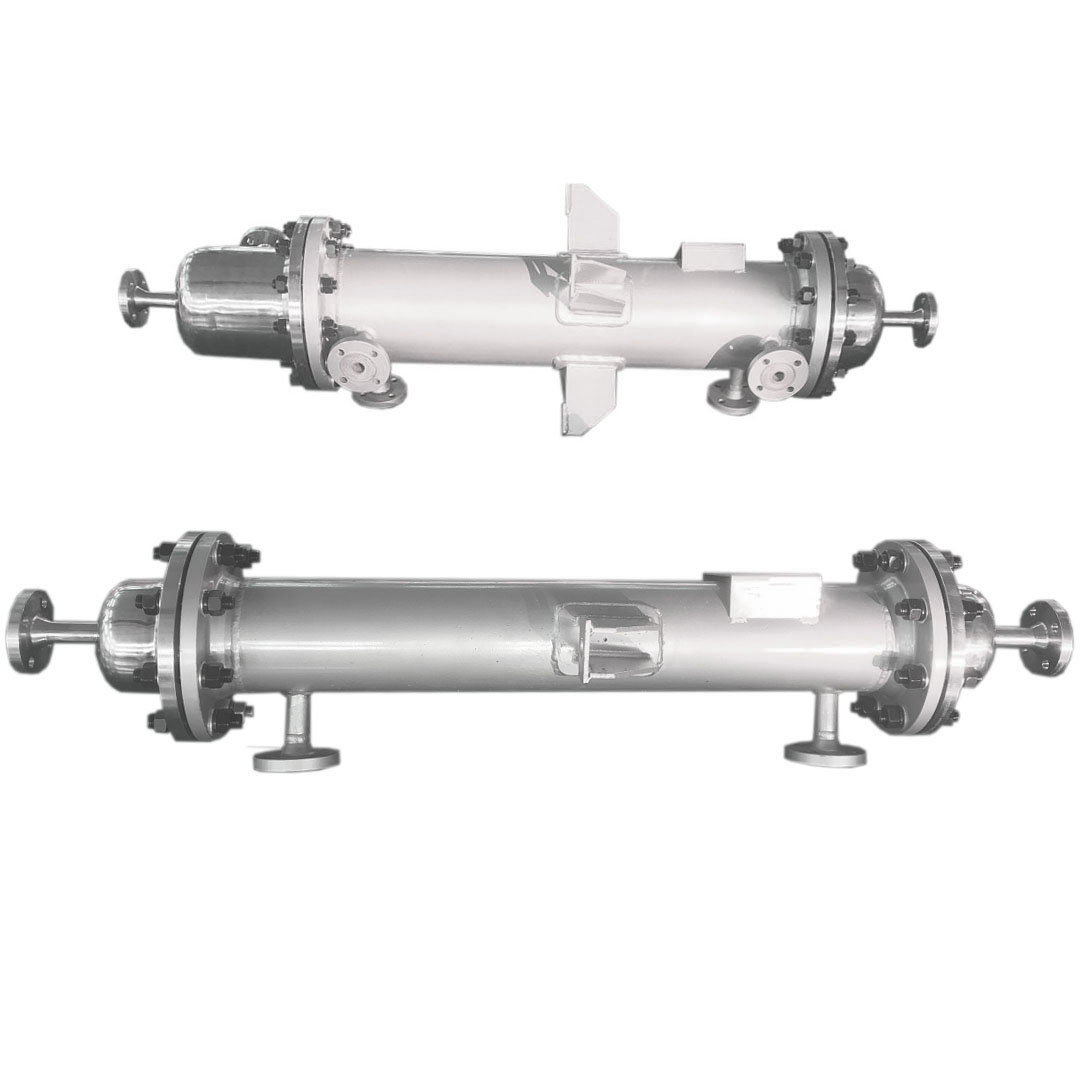

Zhanghua - Oil Cooler Heat Exchanger For Stainless Steel Machine Parts,Condenser Evaporators Heat Exchanger

For many people,Oil Cooler Heat Exchanger For Stainless Steel Machine Parts,Condenser Evaporators is an essential part of their daily grooming routine. The quality of the Oil Cooler Heat Exchanger For Stainless Steel Machine Parts,Condenser Evaporators is at the leading level in the industry and is inseparable from the hard work and innovation of outstanding technical personnel. In the future, Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd will focus on technological innovation, continuously improve service quality and develop better products, and is committed to providing customers with products and services that exceed expectations.

Products Description

Main Features

Application

1. Cooling / heating of injection water.
2, The injection water point cooling.
3. Cooling / heating of pharmaceutical products.
4,Clean steam condensing and cooling.
5, High clean liquid temperature control.Applicable process points: suitable for pharmaceutical injection water, purified water, water injection and other working conditions, such as: medicine heating, cooling; vaccine and blood products cooling and heating; injection water / purified water heating cooling, etc. Pasteurization, hot water sterilization, etc.

➤ As the cooling flow is bigand its speed is high, so the heat transfer coefficient is high, generally K= 600～700(kcal/m2h℃).
➤ It takes small land area when installed vertically, and it can be installed outdoors.
➤ The cooling water flows straight at a high speed. Therefore, the requirement for water quality is not very high, and common water can serve as the cooling water.
➤ The water scale in the pipe can be easily removed, and it can be done without stopping the cooling system.
➤ The temperature rise of the cooling water in the vertical condenser is generally 2～4℃, and the logarithmic mean temperature difference is generally 5～6℃, so water consumption is high. As the equipment is put in the air, the pipe will be easily corroded,butleakage will be easily found if it occurs.

Technology Parameters

Model Number	Heat Exchange Area (m³)	Operating Pressure (MPA)	Working Temperature （℃）	Heat transfer coefficient （W/㎡K）
ZLL1	0.4-1.2	0.6-1.0	≤120	≤350
ZLL2	1.3-3.5	0.6-1.0	≤120	≤350
...	...	...	...	...
ZLL12	140-180	0.6-1.0	≤120	≤350

Design / Calculation Software

You May Like

ANFD Double-cone Drying Equipment Storage Tank Chemical Reactor

Custom Service

➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)

2. Crystallizing Tank, Reaction Kettle

3. Sterile double-cone dryer

4. Rake Vacuum Dryer /Paddle Dryer

5. Plate-fin Heat Exchanger

➤Our advantage
Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel, etc.
Ti/HC22/Mone11

2. Customized Design: Double-Cone in 20L-20m³

Rake Dryer (with mechanical seal) in 16 m³

DN300-DN600 “Three in One”

3. Design/Calculation Software
➤Scope of business
1. On-site Inspection

2. Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service

3. Maintenance

4. Technical Solutions

5.On-site Testing and Training

6. Spare Parts
