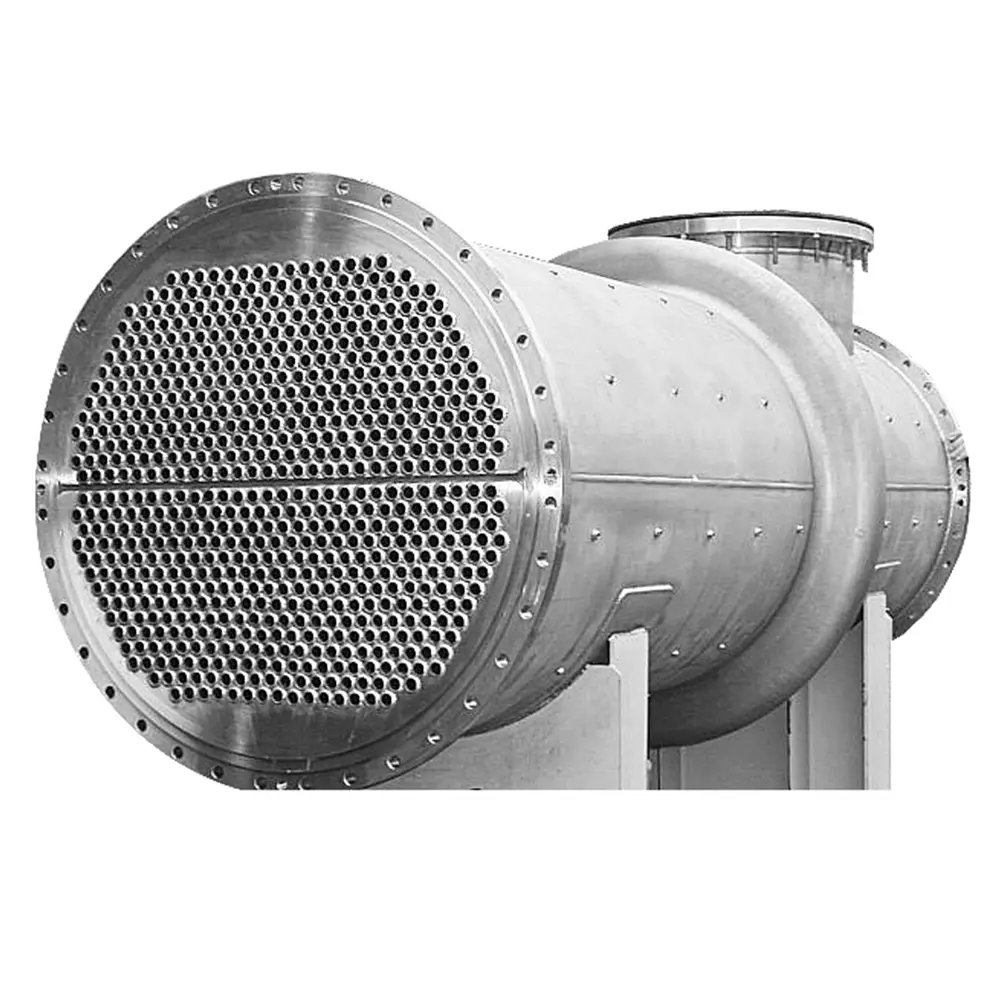

Zhanghua - Technology-leading CE Approved Customizable Stainless Steel Tubuler Heat Exchanger Heat Exchanger

Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd has made immense progress in the development of roducts. Technology-leading CE Approved Customizable Stainless Steel Tubuler Heat Exchanger is the product of our company made by the state-of-the-art technologies. Heat Exchanger indeed plays an essential role in our everyday activities.The Best product are undeniably beautiful, legendary in their own way and yet timeless enough to remain popular throughout a brief period of time. Influenced by the market trends and customers' requirements, the design of Reactors,Drying Equipment,Mixing Machine,Crystallizer,Agitated Nutsche Filter Dryer is made to be unique. It adopts the raw materials that have been tested to conform to the quality standards, which guarantees its quality from the source.

Products Description

Main Features

Application

1. Cooling / heating of injection water.
2, The injection water point cooling.
3. Cooling / heating of pharmaceutical products.
4,Clean steam condensing and cooling.
5, High clean liquid temperature control.Applicable process points: suitable for pharmaceutical injection water, purified water, water injection and other working conditions, such as: medicine heating, cooling; vaccine and blood products cooling and heating; injection water / purified water heating cooling, etc. Pasteurization, hot water sterilization, etc.

➤ As the cooling flow is bigand its speed is high, so the heat transfer coefficient is high, generally K= 600～700(kcal/m2h℃).
➤ It takes small land area when installed vertically, and it can be installed outdoors.
➤ The cooling water flows straight at a high speed. Therefore, the requirement for water quality is not very high, and common water can serve as the cooling water.
➤ The water scale in the pipe can be easily removed, and it can be done without stopping the cooling system.
➤ The temperature rise of the cooling water in the vertical condenser is generally 2～4℃, and the logarithmic mean temperature difference is generally 5～6℃, so water consumption is high. As the equipment is put in the air, the pipe will be easily corroded,butleakage will be easily found if it occurs.

Technology Parameters

Model Number	Heat Exchange Area (m³)	Operating Pressure (MPA)	Working Temperature （℃）	Heat transfer coefficient （W/㎡K）
ZLL1	0.4-1.2	0.6-1.0	≤120	≤350
ZLL2	1.3-3.5	0.6-1.0	≤120	≤350
...	...	...	...	...
ZLL12	140-180	0.6-1.0	≤120	≤350

Design / Calculation Software

You May Like

ANFD Double-cone Drying Equipment Storage Tank Chemical Reactor

Custom Service

➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)

2. Crystallizing Tank, Reaction Kettle

3. Sterile double-cone dryer

4. Rake Vacuum Dryer /Paddle Dryer

5. Plate-fin Heat Exchanger

➤Our advantage
Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel, etc.
Ti/HC22/Mone11

2. Customized Design: Double-Cone in 20L-20m³

Rake Dryer (with mechanical seal) in 16 m³

DN300-DN600 “Three in One”

3. Design/Calculation Software
➤Scope of business
1. On-site Inspection

2. Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service

3. Maintenance

4. Technical Solutions

5.On-site Testing and Training

6. Spare Parts
