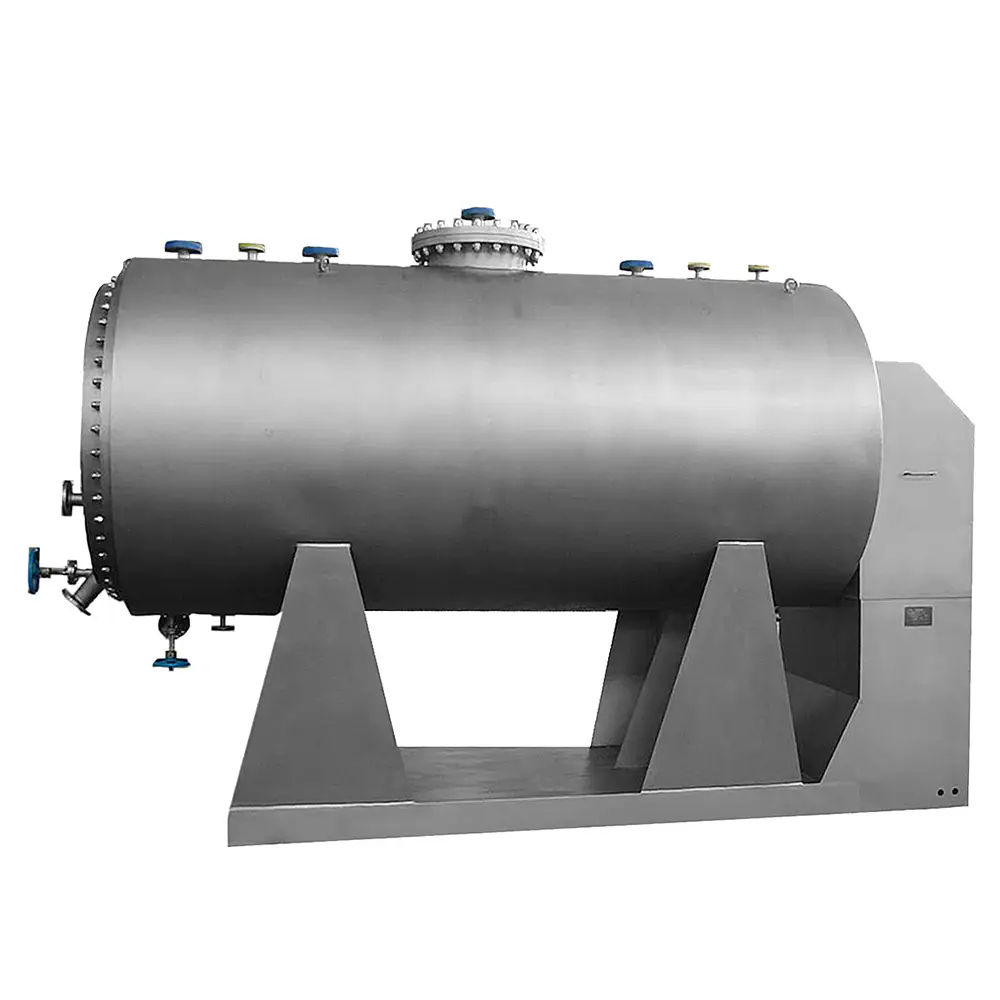

Zhanghua - CE Approved Cost-Effective Stainless Steel 316L Industrial Horizontal Static Crystallizer Static Crystallizer

Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd is always dedicated to the research and development, production and sale of CE Approved Cost-Effective Stainless Steel 316L Industrial Horizontal Static Crystallizer. It is designed to meet the industry standard. In aspect of the product design, our design team always pays close attention to the customers' taste and industry trends. Thanks to this, our CE Approved Cost-Effective Stainless Steel 316L Industrial Horizontal Static Crystallizer can fully attract people's attention with its unique appearance. Moreover, it is excellent performance, making it worth the investment.

Products Description

Summary

The static crystallizer from our company is designed based on the similar products abroad, but is newly developed and manufactured according to the actual usage of national manufacturers and our rich experience of producing barrel equipment. The horizontal crystallizer is with large volume and small power is needed to stir crystal. This equipment can realize fully sealed operation and manufacture in the whole process, which is especially important for highly dangerous material.

Applications and Features

Material: SS304, SS316L, Ti, Hastelloy-C, PTFE lined or other materials

Applications: refined naphthalene, borneol, Lithium Hexafluorophosphate, pharmaceutical,and also crystallization of other products.

Applications: Jacket structure is applied in this equipment that makes big cooling area available. Ribbon agitator is installed in the barrel with fast cooling speed of materials and efficient crystallization. Meanwhile, through the ribbon agitator, all the materials in the barrel can be cooled uniformly, and ensure that grains after crystallizing will have uniform size.

Specification （L）	Diameter of internal tank (mm)	Diameter of jacket(mm)	Heat preservation layer	Motor power(kw)	Rotation speed of blending
2000	1200	1280	60	7.5	3
4000	1300	1380	60	11	3
5000	1400	1480	60	15	3
...	...	...	...	...	...
30000	2500	2580	60	37	3

Design / Calculation Software

You May Like

ANFD Paddle Dryer Chemical Reactor Double-Cone Rotary Dryer

Custom Service

➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)

2. Crystallizing Tank, Reaction Kettle
3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Vacuum Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment

Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,
Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤Scope of business
1. On-site Inspection
2.Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5. On-site Testing and Training
6. Spare Parts
