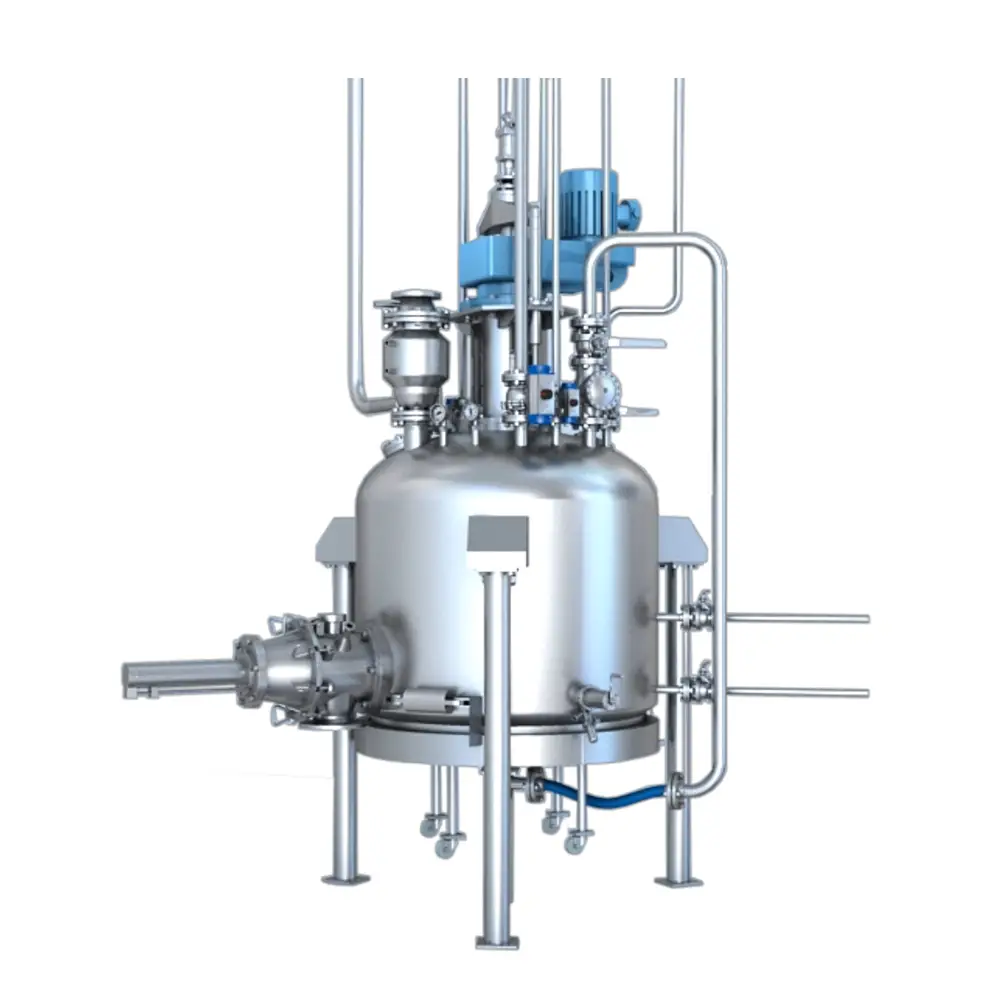

ANFD series Agitated Nutsche Filter Dryer Manufacturer - Zhanghua

◪

 The whole production process can be completed by the system, from feeding crystals and solid-liquid suspension, to automatic discharge of raw materials after drying in the fully closed condition. It can stir solid-liquid, clean filter cake, filter, remove liquid, dry, discharge, and complete CIP/SIP, in line with GMP requirements.

◪

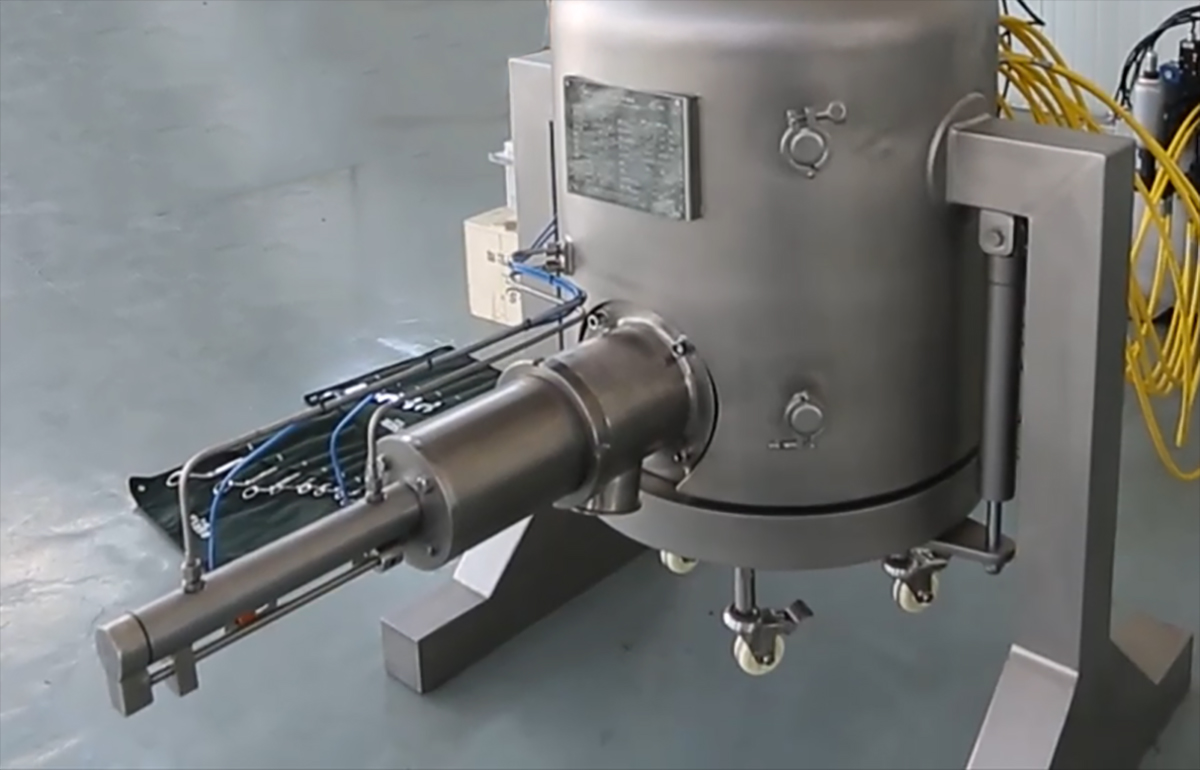

 As the production is carried out in a fully closed condition, the hydraulic motor discharge valve is internally driven by the screw, which can maintain the overall sealing performance of the agitated nutsche filter dryer even when the hydraulic station loses pressure .

◪

 The chassis has a multi-channel sealing structure and leakage observation device with collection function, which can timely detect safety accidents caused by chassis leakage, reduce the occurrence of personnel poisoning and allergy accidents caused by contact with toxic products, and meet EHS requirements.

◪

 In the CIP (cleaning-in-place) process, organic solvents and process water are used to clean the filter cake and tank without disassembling the equipment, to reduce the risk of contamination and cross-contamination to a low level, thus ensuring the safety of the material, workers and machine.

◪

 The discharge valve is designed with special spraying and purging devices, which can purge and clean the valve core and sealing seat without disassembling the valve body, effectively preventing cross-contamination and better protecting the product. On another side, the very little organic solvent used for production will volatilize, and almost 100% of the solvent can be recovered, which creates great economic benefits.

◪

 It adopts a PLC control system, with the functions of parameter setting, historical trend, formula sets, batch report, etc., which provides rich data information for the production process, as well as strong support for the factory's informationization construction.
