Zhanghua | ODM tank crystallizer for sale

Zhanghua has developed to be a professional manufacturer and reliable supplier of high-quality products. Throughout the whole production process, we strictly implement the ISO quality management system control. Since established, we always adhere to independent innovation, scientific management, and continuous improvement, and provide high-quality services to meet and even exceed customers' requirements. We guarantee our new product tank crystallizer will bring you a lot of benefits. We are always standby to receive your inquiry. tank crystallizer Zhanghua is a comprehensive manufacturer and supplier of high-quality products and one-stop service. We will, as always, actively provide prompt services such. For more details about our tank crystallizer and other products, just let us know.This product can withstand the damage. Its mechanical action does not arbitrarily cause the material to be lost from the surface.

Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd still remembered the time when we successfully developed the new product - Factory Manufacturer Supply High Efficiency Jacketed Stainless Steel Crystallizer Tank. The product is absolutely new and has something different in it. It better meets the market demands. Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd have long desired to become one of the most influential enterprises in the industry. At present, we are busy improving our capabilities in product manufacturing, and gathering talents especially technical talents to develop our own core technologies.

Products Description

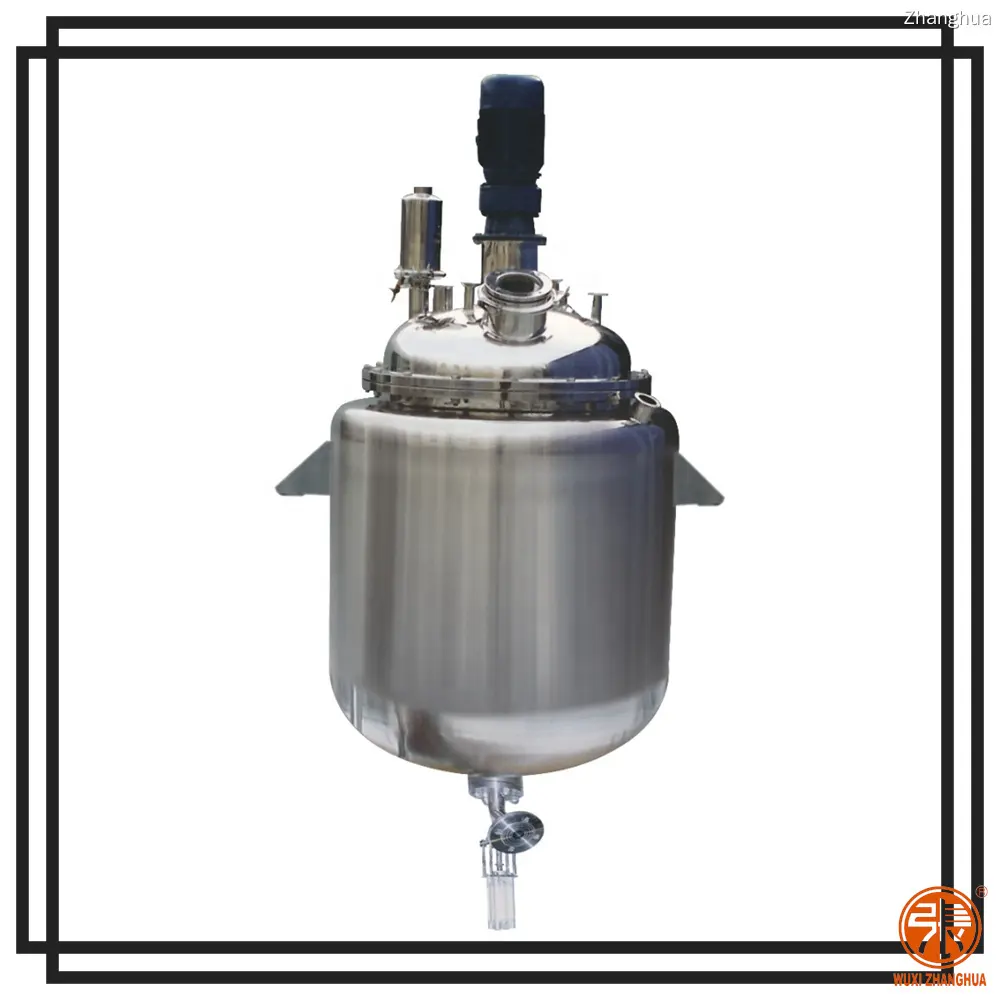

JJ Crystallizing Tank

JJ Crystallizing Tank can be manufactured by SS304, SS316L, Titanium, Hastelloy, PTFE lined or other materials. Its inside wall is treated with electrolytic mirror polishing or mechanical polishing while its outside wall uses SS304 full-welding structure, and its outside surface is treated with mirror polishing or matte polishing.0.2μm water delivery ventilation filter is installed on the crystallization tank. The crystallization tank can endure 121℃ high temperature sterilization, equipped with sanitary pressure meter. The outside connection of the tank uses sanitary rapid open connector. The crystallization tank is equipped with temperature monitoring device, 2 sight mirrors, cleaning ball and nitrogen inlet. The shaft seal uses special sanitary mechanical seal to protect the materials from pollution. The crystallization tank can use frequency conversion speed control device, then the rotation speed of mixing shaft has a wide adjustment range.

Technology Parameters

Specifications(L)	Diameter Of Internal Tank(mm)	Diameter Of Jacket(mm)	Heat Preservation Layer(mm)	Motor Power(kw)	Rotation Speed Of Blending
30	400	500	600	0.55-1.1	60-120
50	500	600	700	0.55-1.1	60-120
...	...	...	...	...	...
32000	3000	3200	2400	37	50-120

Design / Calculation Software

You May Like

ANFD Heat Exchanger Chemical Reactor Double-cone Dryer

Custom Service

➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)

2. Crystallizing Tank, Reaction Kettle
3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Vacuum Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,
Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤Scope of business
1. On-site Inspection
2.Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts

Company Profile
