Set up years ago, Zhanghua is a professional manufacturer and also a supplier with strong capabilities in production, design, and R&D. double cone vacuum dryer We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product double cone vacuum dryer or our company.The product is highly reliable when it runs. It has no probability of failure when it operates for a long time at its rated capacity.
Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd is excited that we will make our High Speed Dehydrator Dryer Powder Drying Machine For Extracting Coffee Milk Whey Protein widely known to the market. The product is the result of our hardworking staff and strong technical capabilities. High Speed Dehydrator Dryer Powder Drying Machine For Extracting Coffee Milk Whey Protein is of high quality and moderate price, so you can buy with confidence. Since the beginning,Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd have been sticking to the business principle of 'integrity' and bearing the mind of 'offering customers the best of us'. We are fully confident that we will make a great success in the future.
| Type: | Vacuum Drying Equipment | Drying Capacity (kg): | 9000 kg |
| Application: | Medicine Processing, Chemicals Processing, Pharmaceutical Processing | Condition: | New |
| Place of Origin: | Jiangsu, China | Brand Name: | ZHANG |
| Voltage: | Customization | Power: | Customization |
| Dimension(L*W*H): | Customization | Key Selling Points: | Multifunctional |
| Warranty: | 1 Year | Weight (KG): | Customization |
| Applicable Industries: | Energy & Mining, Pharmaceutical Company | Showroom Location: | None |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Pressure vessel | Name: | double cone rotary vacuum dryer |
| Material: | Stainless Steel304 /316L | Function: | High Efficiency Drying |
| After-sales Service Provided: | Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service | After Warranty Service: | Video technical support, Online support, Spare parts |
| Local Service Location: | None | Certification: | GMP/CE/PED/ASME/GB150 |
Material: SS304, SS316L, Titanium, Hastelloy, PTFE linedApplication: mainly applicable for drying all kinds of granular materials, such as antibiotics,crystal, in the pharmaceutical, chemical and other industries.
➤Good sealing performance: concentric degree of shaft are controlled well, both ends use mechanical sealing.
➤ Good rigidity: Both ends of the cone are welded together with the cone vessel as a whole. It is not easy to be deformed.
➤Steady transmission: The whole unit is driven by the electrical motor, reducer, big and small gears, which enables the unit run
more stably and reliably.
➤Mounted with CIP and SIP device.
➤ Design with SIP, CIP dedicated device
➤The cone angle is designed as 60° which prevents materials from pilling during rotary process, and avoids powder retention
during discharging.➤The special design of vacuum pipes and vacuum filter increase the loading coefficient, which can even reach 65%.
➤The device includes three layers. The parts touching with materials Jacket in the middle is for hot water circulation. To prevent stainless steel and carbon steel from producing static corrosion, the jacket must be made from stainless steel, and the outer layer uses fiberglass cotton for heat preservation.

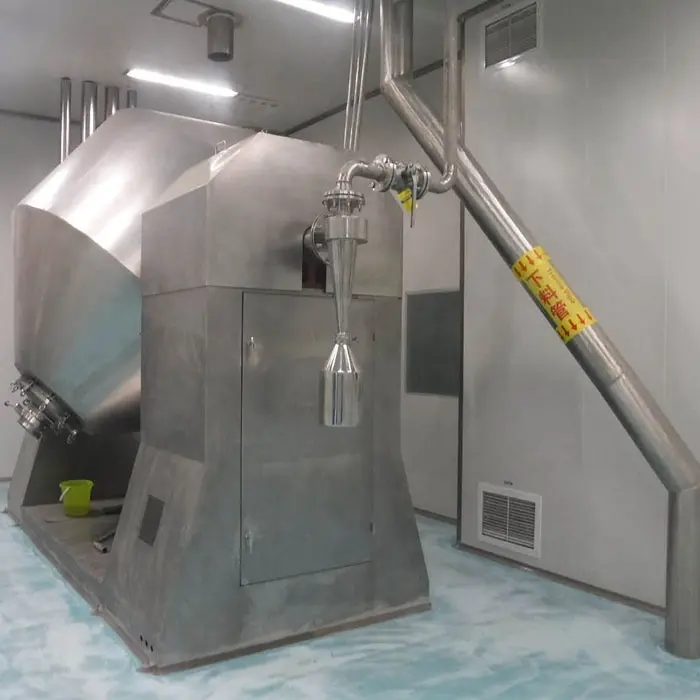

Customer Site
Pharmaceutical Industry
| | | | | Diathermanous area of condensator （㎡） |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| High concentricity of two axes of equipment， 20L-3000L with the concentric degree ≤ 0.16mm,
3000L-5000Lconcentricity ≤ 0.20mm,5000L - 18000L concentricity ≤0.25 mm.
More stable operation, better sealing performance, longer service life |
Zhanghua VS Other | New advanced airtight technology, vacuum ≤ 030Pa, improve product quality, can be used for aseptic grade product production |
Zhanghua VS Other | Clean CIP online (if configured) to reduce labor and equipment pollution |
Zhanghua VS Other | Online sterilized SIP (if configured), capable of producing sterile products |
| Online weighing system (if configured) eliminates the need for weighing after secondary material transfer to reduce labor force and improve measuring accuracy |
| Polishing precision up to 0.014μm, (if configured), easy to clean equipment, prevent material sticking to the wall |
| Double taper with knife (if available) to prevent pilling of sticky materials during drying |
| The first in China, the double cone produced in 1978, is still in use by users, with reliable performance. With nearly 40 years of experience, it has produced no less than 1000 sets |
Design / Calculation Software
ANFD ROTARY VACUUM DRYER PADDLE DYRER VACUUM OVER ➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying) 2. Crystallizing Tank, Reaction Kettle
3. Sterile double-cone dryer
4. Rake Vacuum Dryer/Paddle Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel, Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤scope of business
1. On-site Inspection
2. Technical Innovation Plan for Equipment
Technical Improvement Plan for Equipment’s Structure Optimization
Fast and Effective Solution to Equipment Malfunctions
Highly Efficient and Precise On-site Construction Service
Commitment to a Deadline in Customization
A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts
