Washing stage
Further purification of filter cake, rinse and dehydration of mother liquid remained. Mix the lotion and the filter cake via up and down of agitator to make the filter cake slurry finally, then the filter cake can get the full wash.

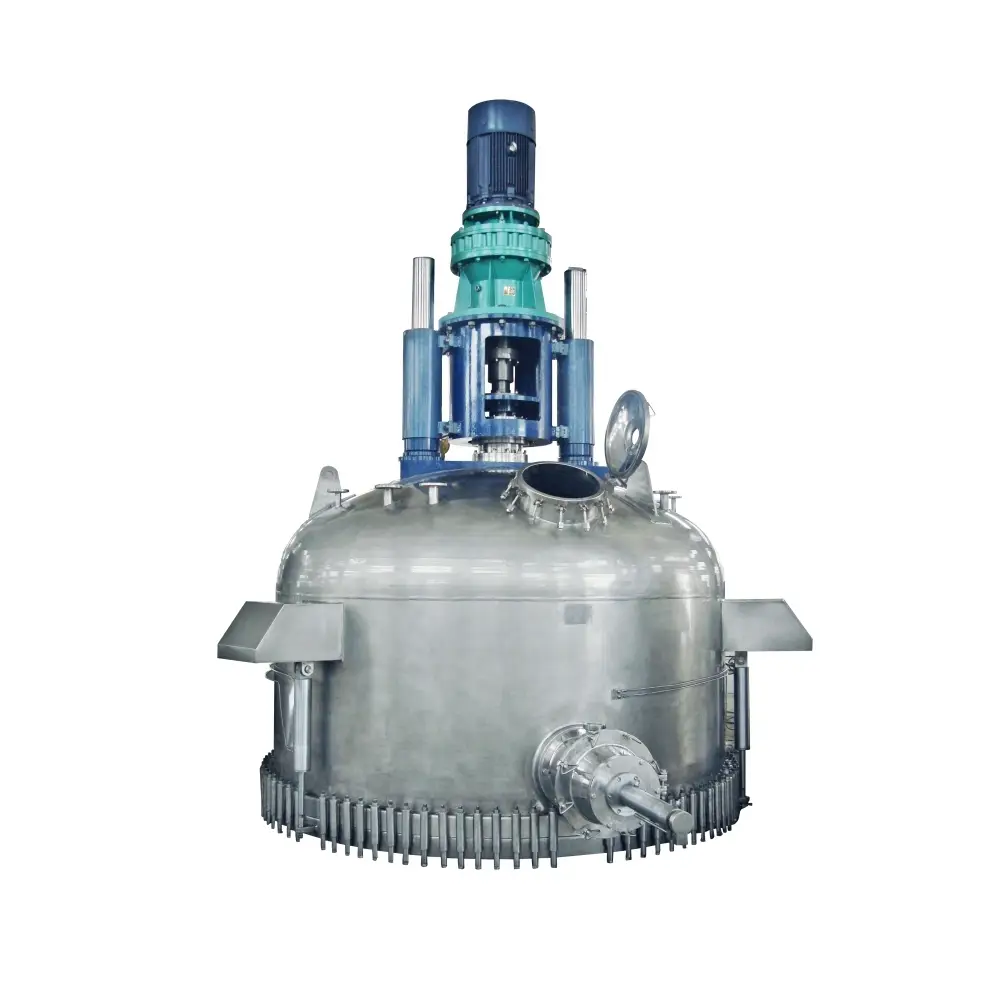

Zhanghua - Hastelloy Agitated Nutsche Filter Mixing Tank For Pharmaceutical Industry Topsale Product
Manufacturing Hastelloy Agitated Nutsche Filter Mixing Tank For Pharmaceutical Industry requires flexible craftsmanship and high-end technologies.The product is suitable for a wide range of industries like Other Industrial Filtration Equipment.
5.0
Customization:
Material (Min. Order: 1 sets),Function (Min. Order: 1 sets),Size (Min. Order: 1 sets)
shipping:
Express Sea freight · Land freight · Air freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
As an innovation-driven company,Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd has been devoted to product development for years. We are proud and excited as well to announce that we have successfully developed Hastelloy Agitated Nutsche Filter Mixing Tank For Pharmaceutical Industry. At Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd, it is our goal to provide the highest quality products and superior service to our customers, both being our top priority. By gathering the elites in the industry together,Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd aim to make full use of their wisdom and experience to develop and manufacture competitive products. Our great wish is to become a leading enterprise on a global scale.
| Condition: | New | Applicable Industries: | Energy & Mining, Pharmaceutical company |
| Showroom Location: | None | Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty of core components: | 1 Year | Core Components: | Pressure vessel |
| Place of Origin: | Jiangsu, China | Brand Name: | Zhang |
| Warranty: | 1 Year | Material: | Stainless Steel304/316L/HC |
| Keywords: | high containment/all-in-one | Product name: | Nutsche Filter Reactor |
| After Warranty Service: | Video technical support, Online support, Spare parts | Local Service Location: | None |
| After-sales Service Provided: | Field installation, commissioning and training |
Products Description
Applications and Features
Material: SS304, SS316L, Ti, Hastelloy-C, PTFE lined or other materials
Applications：It is widely applied in the industries, such as pharmaceutical, chemical engineering, agrochemical, food, etc. It can realize the continuous operation in vacuum, and even more suitable for producing sterile and poisonous products.
Filtering and Washing
“two in one” device
The separation of filter cake and mother liquid. The thickness of filter cake can reach 500mm.
Main Characteristics
➤The whole vessel is designed and manufactured according to the pressure vessel standard.
➤It can work in closed environment in the whole process.
➤At the filtering stage, it mainly relied on vacuum on the bottom of the vessel. In order to improve the filtering efficiency,pressure can be brought into the vessel, but generally less than 0.3 MPa.
➤It can work in closed environment in the whole process.
➤At the filtering stage, it mainly relied on vacuum on the bottom of the vessel. In order to improve the filtering efficiency,pressure can be brought into the vessel, but generally less than 0.3 MPa.
➤After the filter cake is dried, it’s in high density, so the S-type blade looses the filter cake though the anticlockwise rotation, ascending and descending.
➤At the washing stage, the materials in the vessel can be totally washed through the clockwise rotation, up and down by the S-type blades.
➤The bottom plate is not removable. The supporting network and punching plate on the bottom plate can not only help liquid flow,but also make installing filter cloth easier.
➤At the washing stage, the materials in the vessel can be totally washed through the clockwise rotation, up and down by the S-type blades.
➤The bottom plate is not removable. The supporting network and punching plate on the bottom plate can not only help liquid flow,but also make installing filter cloth easier.
➤Filter cloth, non-woven cloth and sintering net can be used as the medium of filtration.
➤Products are discharged through S-type blades automatically from the side discharge outlet.
➤Clockwise and anticlockwise rotation of the agitator are driven by motor reducing gear, and regulate the ascending and descending speed. Both domestic and imported reducers are acceptable.Filter cloth, non-woven cloth and sintering net can be used as the medium of filtration.
➤Products are discharged through S-type blades automatically from the side discharge outlet.
➤Clockwise and anticlockwise rotation of the agitator are driven by motor reducing gear, and regulate the ascending and descending speed. Both domestic and imported reducers are acceptable.Filter cloth, non-woven cloth and sintering net can be used as the medium of filtration.
Product Details
Customer Site
Pharmaceutical And Chemical Industry
Technical Parameter
Specification | capacity（m³） | Filter area（m³） | Mixing Travel(mm) | Motor Power(kw) |
φ1000 | 1.2 | 0.8 | 300 | 5.5 |
φ1200 | 1.5 | 1 | 300 | 5.5 |
... | ... | ... | ... | ... |
φ4600 | 30 | 16 | 550 | 75 |
Design / Calculation Software
Custom Service
➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)
1. Multifunctional “Three in One” (filtering, washing and drying)
2. Crystallizing Tank, Reaction Kettle
3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Vacuum Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,
3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Vacuum Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,
Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤Scope of business
1. On-site Inspection
2.Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤Scope of business
1. On-site Inspection
2.Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts
