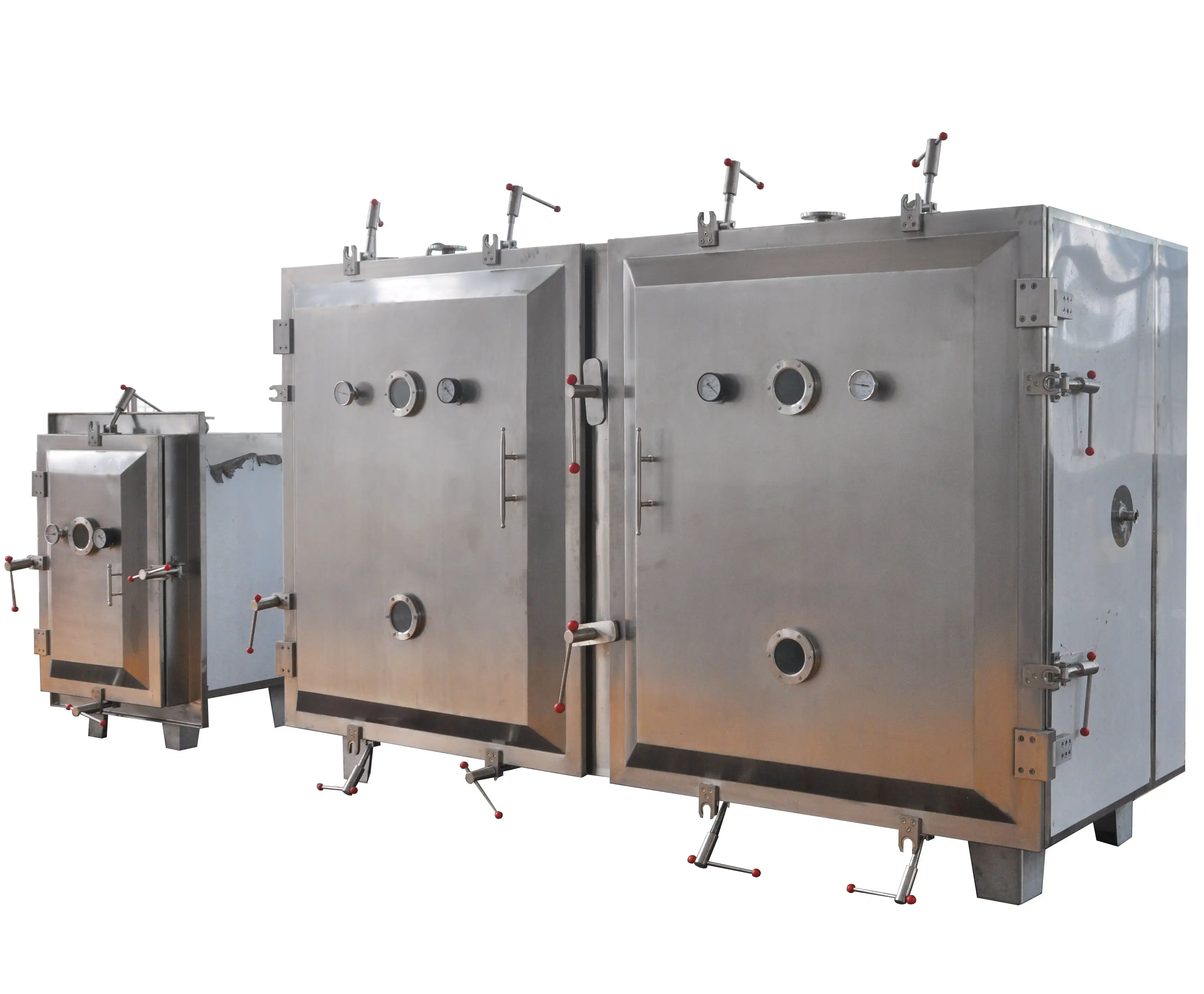

Zhanghua - Square Static Tray Dryer Oven For Sensitive Material in Pharmaceuticals Industry Vacuum oven

We feature a broad range of hi-quality Square Static Tray Dryer Oven For Sensitive Material in Pharmaceuticals Industry for peolpe of all age group. The technology greatly improves product performance and accelerates the manufacturing process.It has a considerably expanded application range and is popular in the field(s) of Drying Equipment. The launch of a product that perfectly solves the industry's pain points is that Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd has always adhered to the goal of technological innovation, and the newly developed products perfectly solve the pain points that have been lingering in the industry for a long time. Once launched, they have been enthusiastically sought after by the market.

Products Description

Vacuum Oven

Material:SS304, SS316L, Ti, Hastelloy, PTFE lined or other materials

Application:pharmaceutical, food, light, chemical and other industries.

Features

➤Vacuum oven is specially designed for drying heat-sensitive, easily decomposed and oxidized material. Inert gas can be filled into
oven, so stuff with some complicated composition can also be dried in a short time. Faster drying speed happens in lower
temperature while heat is fully used.

➤Sterilization treatment can be done before drying. And in the drying process, any impurity is prohibited. The dryer is static and vacuum, so that the formation of dry material will not be damaged.

➤It can work in a high vacuum state of 20Pa. Heating methods: steam, hot water and heat conducting oil.

Advantage

➤The advantages are fast drying speed, little pollution and good product quality. The oven keep the work space vacuum and dry by
vacuum pump, which helps reduce the boiling point and fasten drying speed.

➤It works under the negative pressure with less oxygen content, which can reduce or eliminate the oxidation reaction.

➤Under the negative pressure, boiling point is reduced, and it avoids the damage of material’s quality.

➤If solvent is toxic or valuable, the gas can be condensed and recycled.

Product Details

The parts touching with materials can be made from SS304, SS316L, Ti, Hastelloy, PTFE lined or other materials. Its inside wall is treated with electrolytic mirror polishing or mechanical polishing while its outside wall uses SS304 full-welding structure, and its outside surface is treated with mirror polishing or matte polishing.

Technical Parameter

Model	BJYSL-DZF-6020	DZF-6050	DZF-6090	DZF-6210
D*W*H(internal)	300×300×275	415×370×345	450×450×450	560×600×640
D*W*H(mm)	605×490×450	730×560×550	610×680×1460	720×820×1750
Power（W）	450	1400	1450	2200
Plate	1	2	2	3
Temperature Range	RT+10℃～250℃
Temperature Resolution	±0.1℃
Upper/ lower temperature difference(℃)	±1℃
vacuum degree	133Pa
Working Temperature	+5℃~35℃

Technical Parameter

Model	D*W*H  (internal)	D*W*H (mm)	Plate	interlayer distance （mm）	Drying tray	vacuum degree  （MPa）
ZDF-6	1000×1000×1200	1300×1350×1680	8	120	16	-0.096
ZDF-10	1000×1400×1200	1300×1680×1700	8	120	24	-0.096
ZDF-15	1160×1360×1200	1500×1700×1700	8	120	32	-0.096
ZDF-20	1160×2000×1200	1500×2300×1770	8	120	48	-0.096
ZDF-30	1160×2000×1600	1500×2300×2100	10	120	60	-0.096
