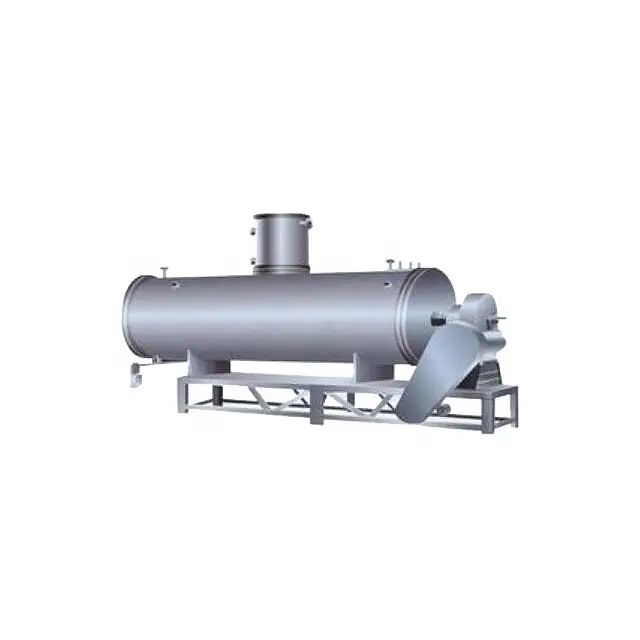

Zhanghua - Competitive Price Energy Saving Agitating Type Stainless Steel Vacuum Paddle Dryer Paddle dryer

It is the utilization of technology that contributes to the high-efficiency manufacturing of the product. In the field(s) of Drying Equipment , it is highly accepted and widely used. Well-integrated use of technologies contributes to the high-efficiency manufacturing process.It has been proved that the product is indispensable in the field(s) of Drying Equipment. We strictly stick to the concept of scientific design, which contributes to the unique appearance and easy-to-use performance of our Reactors,Drying Equipment,Mixing Machine,Crystallizer,Agitated Nutsche Filter Dryer. Also, we never use inferior raw materials and ensure they are all tested by our QC inspectors, thereby, guaranteeing Drying Equipment quality. We believe that our product with so many advantages can bring benefits to all customers.

Products Description

Application

➤Material that needs to be dried in the vacuum condition in pharmaceutical, food, chemical and other industries.
➤ Apply to slurry, paste and powder materials.
➤ Heat sensitive materials of low-temperature drying requirement.
➤ Easily oxidized, explosive, strong stimulation, highly toxic materials.
➤Organic solvent of materials that needs to be recycled.

Principle

Vacuum rake dryer, it is an innovation horizontal batch-type vacuum drier improved on the basis of absorbing technology of
domestic rake drier. The moisture of wet material will be evaporated by heat transmission. The stirrer with grinding scraper will remove material on hot surface and move in the container to form cycle flow. The evaporated moisture will be drawn out by vacuum pump.

Feature

1. Being installed stirrer in the machine, it makes raw material form the state of continuous circle inside the body, so heating uniformity of raw material is raised greatly.
2. Being installed stirrer in the machine, slurry and paste shape material can be dried easily.
3. Special design for discharging port, make better sealing and less material accumulation, discharge is easy.
4. There are two seal model, mechanical seal and packing seal. The design supply good seal and long life.
5. The special techniques of shaft and rake support high strength and concentric.
6. The medium in shaft and vibration adding equipment will be equipped by requirement
7. Use different filter form according to different material.

Product Details

Technical Parameter

Working volume(L)	300L	600L	1800L	3600L
Heating area(㎡)	3.2	5.1	10.6	16.5
Motor Power（kw）	4	5.5	11	22

Design / Calculation Software

You May Also Like

Storage Tank Double-Cone Rotary Dryer ANFD Vacuum Oven

Custom Service

➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)

2. Crystallizing Tank, Reaction Kettle
3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Dryer
5. Plate-fin Heat Exchanger
➤Our advantage

1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,

Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤Scope of business
1. On-site Inspection
2. Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts
