We have specialized in providing industrial proces equipment for fine chemicals, pesticides, new energy,new materials, and pharmaceutical industries for more than 48 years.

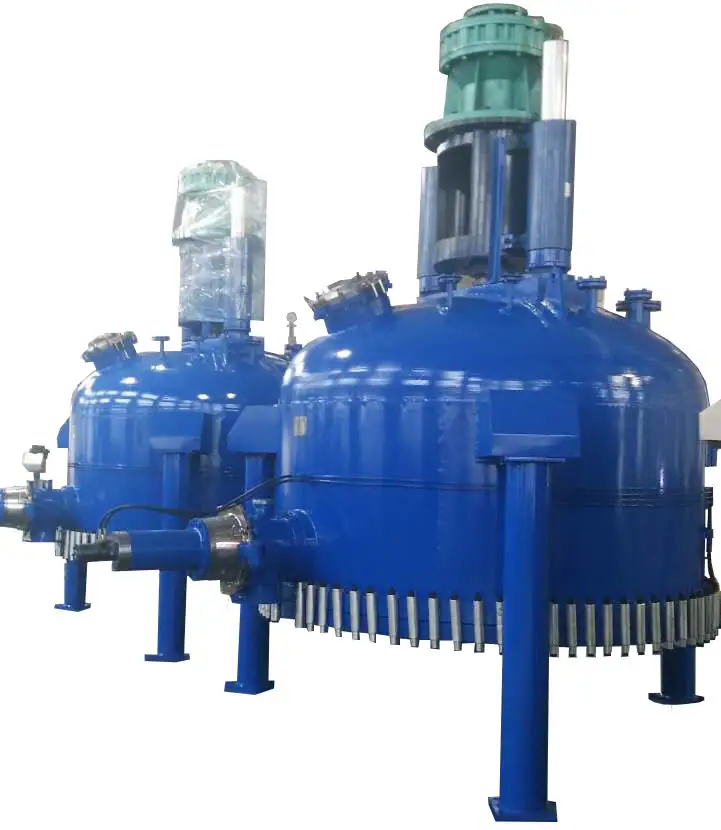

Zhanghua - Glass Lined Vacuum Separator Agitated Nutsche Filter For Chemical Industry Agitated Nutsche Filter 1

Zhanghua - Glass Lined Vacuum Separator Agitated Nutsche Filter For Chemical Industry Agitated Nutsche Filter 2

Zhanghua - Glass Lined Vacuum Separator Agitated Nutsche Filter For Chemical Industry Agitated Nutsche Filter 3

Zhanghua - Glass Lined Vacuum Separator Agitated Nutsche Filter For Chemical Industry Agitated Nutsche Filter 4

Zhanghua - Glass Lined Vacuum Separator Agitated Nutsche Filter For Chemical Industry Agitated Nutsche Filter 5

Zhanghua - Glass Lined Vacuum Separator Agitated Nutsche Filter For Chemical Industry Agitated Nutsche Filter 6

Zhanghua - Glass Lined Vacuum Separator Agitated Nutsche Filter For Chemical Industry Agitated Nutsche Filter 7

Zhanghua - Glass Lined Vacuum Separator Agitated Nutsche Filter For Chemical Industry Agitated Nutsche Filter

Name: Zhanghua - Glass Lined Vacuum Separator Agitated Nutsche Filter For Chemical Industry Agitated Nutsche Filter
Uploaded: 2025-08-20T14:36:29+08:00
Description: The successful research and development of the Glass Lined Vacuum Separator Agitated Nutsche Filter For Chemical Industry not only deeply analyzes the actual needs of the target customers, but also combines its own superior resources.It can be extensively used for Separation Equipment.

The successful research and development of the Glass Lined Vacuum Separator Agitated Nutsche Filter For Chemical Industry not only deeply analyzes the actual needs of the target customers, but also combines its own superior resources.It can be extensively used for Separation Equipment.

Customization:

Function (Min. Order: 1 sets),Material (Min. Order: 1 sets)

shipping:

Express Sea freight · Land freight · Air freight

Inquiry

Write a Review

For manufacturing Glass Lined Vacuum Separator Agitated Nutsche Filter For Chemical Industry requiring flexible craftsmanship and high-end technologies.The product is suitable for a wide range of industries like Separation Equipment. Technological innovation promotes products to achieve an invincible position in fierce competition. Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd hope that we can respond more rapidly to changes in the industry with a deeper understanding of the market needs. We believe that we will stand out in the global market with our finest-quality products and unparalleled services.

Place of Origin:	Jiangsu, China	Type:	Separating Plant
Product Type:	Agitated Nutsche Filter	Condition:	New
Video outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2020	Warranty of core components:	1 Year
Core Components:	Pressure vessel	Brand Name:	Zhang
Voltage:	Customization	Power:	Customization
Weight:	Customization	Dimension(LWH):	Customization
Warranty:	1 Year	Key Selling Points:	High Productivity
Applicable Industries:	Food & Beverage Factory, Chemical / pharmaceutical industry	Showroom Location:	None
Name:	nutsche filter	Application:	Chemical
Machine type:	Rotary	Description:	Filter Dryer
After-sales Service Provided:	Online support	After Warranty Service:	Online support
Local Service Location:	None	Certification:	GMP/CE/PED/ASME/GB150

Zhanghua - Glass Lined Vacuum Separator Agitated Nutsche Filter For Chemical Industry Agitated Nutsche Filter 8

Products Description

Zhanghua - Glass Lined Vacuum Separator Agitated Nutsche Filter For Chemical Industry Agitated Nutsche Filter 9

Applications and Features

Material: SS304, SS316L, Ti, Hastelloy-C, PTFE lined or other materials

Applications：It is widely applied in the industries, such as pharmaceutical, chemical engineering, agrochemical, food, etc. It can realize the continuous operation in vacuum, and even more suitable for producing sterile and poisonous products.

Zhanghua - Glass Lined Vacuum Separator Agitated Nutsche Filter For Chemical Industry Agitated Nutsche Filter 10

Filtering and Washing

“two in one” device

Filtering stage

The separation of filter cake and mother liquid. The thickness of filter cake can reach 500mm.

Washing stage

Further purification of filter cake, rinse and dehydration of mother liquid remained. Mix the lotion and the filter cake via up and down of agitator to make the filter cake slurry finally, then the filter cake can get the full wash.

Zhanghua - Glass Lined Vacuum Separator Agitated Nutsche Filter For Chemical Industry Agitated Nutsche Filter 11

Zhanghua - Glass Lined Vacuum Separator Agitated Nutsche Filter For Chemical Industry Agitated Nutsche Filter 12

Main Characteristics

➤The whole vessel is designed and manufactured according to the pressure vessel standard.
➤It can work in closed environment in the whole process.
➤At the filtering stage, it mainly relied on vacuum on the bottom of the vessel. In order to improve the filtering efficiency,pressure can be brought into the vessel, but generally less than 0.3 MPa.

➤After the filter cake is dried, it’s in high density, so the S-type blade looses the filter cake though the anticlockwise rotation, ascending and descending.
➤At the washing stage, the materials in the vessel can be totally washed through the clockwise rotation, up and down by the S-type blades.
➤The bottom plate is not removable. The supporting network and punching plate on the bottom plate can not only help liquid flow,but also make installing filter cloth easier.

➤Filter cloth, non-woven cloth and sintering net can be used as the medium of filtration.
➤Products are discharged through S-type blades automatically from the side discharge outlet.
➤Clockwise and anticlockwise rotation of the agitator are driven by motor reducing gear, and regulate the ascending and descending speed. Both domestic and imported reducers are acceptable.Filter cloth, non-woven cloth and sintering net can be used as the medium of filtration.

Product Details

Zhanghua - Glass Lined Vacuum Separator Agitated Nutsche Filter For Chemical Industry Agitated Nutsche Filter 13

Zhanghua - Glass Lined Vacuum Separator Agitated Nutsche Filter For Chemical Industry Agitated Nutsche Filter 14

Customer Site

Pharmaceutical Industry

Chemical Industry

New Energy Industry

Zhanghua - Glass Lined Vacuum Separator Agitated Nutsche Filter For Chemical Industry Agitated Nutsche Filter 19

Zhanghua - Glass Lined Vacuum Separator Agitated Nutsche Filter For Chemical Industry Agitated Nutsche Filter 20

Technical Parameter

Specification	capacity（m³）	Filter area（m³）	Mixing Travel(mm)	Motor Power(kw)
φ1000	1.2	0.8	300	5.5
φ1200	1.5	1	300	5.5
...	...	...	...	...
φ4600	30	16	550	75

Design / Calculation Software

Zhanghua - Glass Lined Vacuum Separator Agitated Nutsche Filter For Chemical Industry Agitated Nutsche Filter 21

Custom Service

➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)

2. Crystallizing Tank, Reaction Kettle
3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Vacuum Dryer
5. Plate-fin Heat Exchanger
➤Our advantage

1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,

Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤Scope of business
1. On-site Inspection
2.Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts
