Zhanghua - Stainless Steel Hot Sale Pharmaceutical Chemical Industry Thermo Enzyme Reactor Reaction Kettle
Technology is the core productive force of our company. We have been focusing on improving and upgrading our currently-used technologies since our inception. For now, we mainly adopt to manufacture the Reactors,Drying Equipment,Mixing Machine,Crystallizer,Agitated Nutsche Filter Dryer.It is used in the application(s) of Reactors.
5.0
Customization:
Material (Min. Order: 1 sets),Function (Min. Order: 1 sets),Size (Min. Order: 1 sets)
shipping:
Express Sea freight · Land freight · Air freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Today is a great day that Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd plans to introduce our newest product to the public. It has an official name called Zhang and is supplied at a competitive price. The result of upgrades in technologies proves to be very positive. The finished Stainless Steel Hot Sale Pharmaceutical Chemical Industry Thermo Enzyme Reactor is characterized by stable quality.It can play out its greatest value in the field(s) of Reactors. Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd intend to gather more industry talents because people's wisdom is driven source for us to advance forward. We plan to allocate a large amount of money for product development and technology upgrades. What's more, we aim to become an influential enterprise in the global market.
| Capacity: | Customization, 30L~8000L | Automatic Grade: | Automatic |
| Type: | Reaction Kettle | Condition: | New |
| Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | Pressure vessel | Place of Origin: | Jiangsu, China |
| Brand Name: | Zhang | Voltage: | Customization |
| Power: | Customization | Dimension(L*W*H): | Customization |
| Weight: | Customization | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Applicable Industries: | Energy & Mining, Pharmaceutical company |
| Showroom Location: | None | Material: | Stainless Steel304/316L |
| Application: | Chemical/Pharmaceutical Industry | Product name: | Reactor Tank |
| After-sales Service Provided: | Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support | After Warranty Service: | Video technical support, Online support, Spare parts |
| Local Service Location: | None | Certification: | GMP/CE/PED/ASME/GB150 |
Products Description

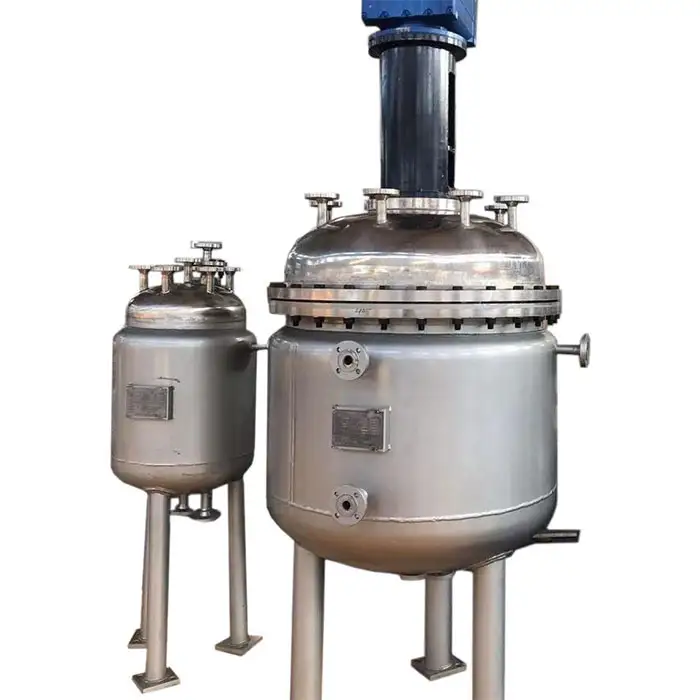

Reaction Kettle
Material：
SS304, SS316L, Titanium, Hastelloy, PTFE lined and other materials
SS304, SS316L, Titanium, Hastelloy, PTFE lined and other materials
Application：
This equipment is used in the process of hydrolysis,neutralization,crystallization,distillation and evaporation in pharmaceutical,chemical, food, light and other industries.Structural Feature
➤The reaction kettle is composed of kettle body, kettle cover, agitator, heating jacket, supporting and driving devices, seal devices, and etc. and equipped with electric heating rods.
➤Considering clients’ different producing technology and operating conditions, usually mixing patterns are divided into anchor,propeller, turbo, push or frame. The support seat has two kinds, hanging or back supporting type. There are holes for oil in and out, venting, and temperature monitoring in the jacket. At the bottom of the kettle, there is a discharge hole.Cycloidal pinwheel reducer, variable-speed reducer and others could be applied in the rotating mechanism. The sealing device can use machines; Sleeve, semi-tube and coil pipe structure can be used in heating and cooling. There are several heating mode,such as steam, electric heating, heat conduction oil, etc. In order to meet different requirements of acid-and alkali-proof,high temperature resistance, wear resistance, corrosion resistance and others under diffrent working environments, reaction kettles can be designed and manufactured based on clients’ requests.
➤Considering clients’ different producing technology and operating conditions, usually mixing patterns are divided into anchor,propeller, turbo, push or frame. The support seat has two kinds, hanging or back supporting type. There are holes for oil in and out, venting, and temperature monitoring in the jacket. At the bottom of the kettle, there is a discharge hole.Cycloidal pinwheel reducer, variable-speed reducer and others could be applied in the rotating mechanism. The sealing device can use machines; Sleeve, semi-tube and coil pipe structure can be used in heating and cooling. There are several heating mode,such as steam, electric heating, heat conduction oil, etc. In order to meet different requirements of acid-and alkali-proof,high temperature resistance, wear resistance, corrosion resistance and others under diffrent working environments, reaction kettles can be designed and manufactured based on clients’ requests.
Operating Requirements
➤Materials of the reaction kettle are heated by jacket.
➤The vent pipe installed in the upper part of the jacket should be unblocked.
➤Oil should be slowly heated, especially in the first warming period, you should pay attention to preventing oil and steam from blasting boiling.
➤If there are no materials (heat absorbing medium) in the kettle, don’t heat jacket for testing.
➤The heating speed and insulation status(on/off) can be adjusted by valves or temperature controller
➤The vent pipe installed in the upper part of the jacket should be unblocked.
➤Oil should be slowly heated, especially in the first warming period, you should pay attention to preventing oil and steam from blasting boiling.
➤If there are no materials (heat absorbing medium) in the kettle, don’t heat jacket for testing.
➤The heating speed and insulation status(on/off) can be adjusted by valves or temperature controller
Welding Field
Customer Site
Pharmaceutical Industry
Technical Parameter
Specification (L) | Inner tank diameter (mm) | Jacket diameter (mm) | Motor Power (kw) | Rotational Speed (r.p.m) |
30 | 400 | 500 | 0.6-1.1 | 60-80 |
50 | 500 | 600 | 0.6-1.1 | 60-80 |
... | ... | ... | ... | ... |
32000 | 3000 | 3200 | 37 | 50-100 |
Technical Parameter
Type | Nominal Capacity (L) | Actual Capacity (L) | Tlectro-thermal power | Oil Jacket VOlume (L) | The Size of the pot(mm) | Jacket Size (mm) | External Size (mm) | Power (n/k) | Mixing Soeed (r.p.m) |
DFG50 | 50 | 78 | 4*2KW | 96 | 400 | 600 | 824*2015 | 1450/1.1 | 80 |
DFG100 | 100 | 127 | 6*2KW | 127 | 500 | 700 | 1004*2120 | 1450/1.1 | 80 |
... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
DFG3000 | 3000 | 3056 | 18*5KW | 800 | 1600 | 1800 | 2250*4250 | 1450/4 | 80 |
Design / Calculation Software
Custom Service
➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)
1. Multifunctional “Three in One” (filtering, washing and drying)
2. Crystallizing Tank, Reaction Kettle
3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Vacuum Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,
3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Vacuum Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,
Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤Scope of business
1. On-site Inspection
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤Scope of business
1. On-site Inspection
2. Technical Innovation Plan for Equipment
Technical Improvement Plan for Equipment’s Structure Optimization
Fast and Effective Solution to Equipment Malfunctions
Highly Efficient and Precise On-site Construction Service
Commitment to a Deadline in Customization
A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts
