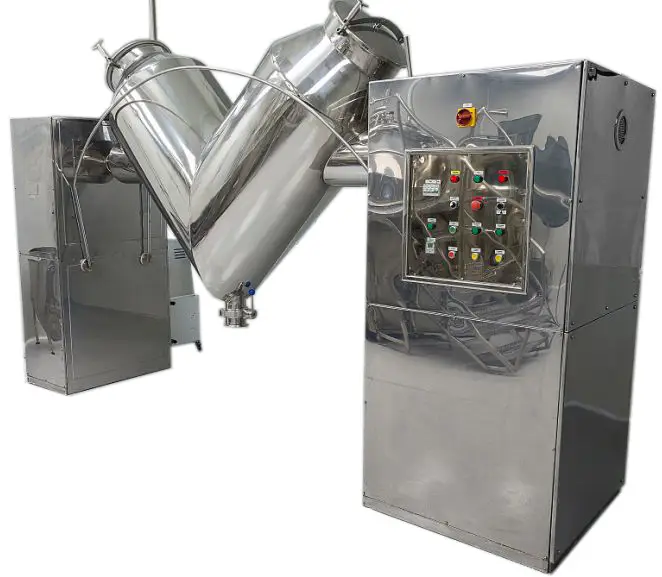

Zhanghua - Chemical Powder V Shape Powder Mixer & Blender / Medicine Powder Mixing Machine / Vitamin Powder Blending Machine V-efficiency Mixer

To maintain our competitiveness in the market,Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd has strengthened our R&D capabilities to speed up the progress of new product development. Now, we announce that we have independently developed Chemical Powder V Shape Powder Mixer & Blender / Medicine Powder Mixing Machine / Vitamin Powder Blending Machine which is more competitive. The product is characterized by multiple advantages.Its application ranges have been expanded to the Mixing Equipment. Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd have realized the importance of technology. In recent years, we have been investing heavily in technology improvement and upgrades and the research and development of new products. In this way, we can occupy a more competitive position in the industry.

Products Description

V-EFFICIENCY MIXER

V-type high efficient mixer is an international widely used powder andgranular materials mixer. It owns advantages as simple structure, easyoperation, convenient maintenance and cleaning, high speed, good mixingeffect, etc.It is an ideal mixing equipment that can be widely used in magnetic materials, powder metallurgy, pharmaceutical, chemical,foodand other industries

Working Principle

It is suitable for mixing the material with good fluidity and the powder with small differences in physical properties.Also it applies to the material with low requirement of mixing ratio and short mixing time. It will not damage the form of the material because the material in the Vtype mixer flows smoothly. Therefore, V-type mixer also applies to mix the granular material that is easily broken and easily wearing. And it is suitable for mixing the finer powder, lump and moisture materialThis design absorbs advantages of domestic and foreign similar products. Due to the different material plane and transverse force, it can promote the material with lateral interaction.When the mixer is rotated, the material status is from separation to combination and then from combination to separation. The lateral force makes about 25% of the material from one bucket to another one by each circle. In this way, the material is mixed in transversely and longitudinally, so that the material can reach a very uniform mixing effect.

Technical Parameter

Model	Maximum loading (L)	Diameter (mm)	Speed	Height of discharge  outlet (mm)	L*W*H （mm）	power
V-20	10	200	15	550	1150*380*925	0.37
V-30	15	250	15	550	1250*400*960	0.37
...	...	..	...	...	...	...
V-10000	5000	1750	8	800	6500*2600*4500	37

Design / Calculation Software

You May Like

ANFD Paddle Dryer Double-Cone Dryer Storage Tank

Custom Service

➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)

2. Crystallizing Tank, Reaction Kettle
3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Vacuum Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,
Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤Scope of business
1. On-site Inspection
2.Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts

Company Profile
