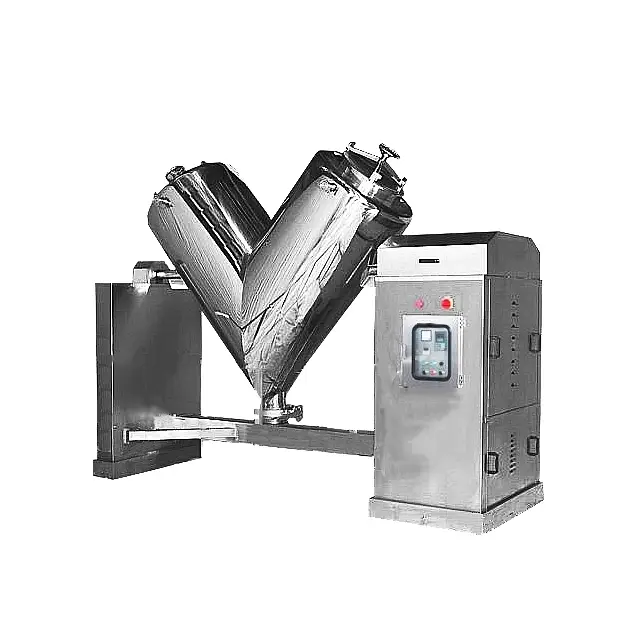

Zhanghua - High Quality CE Approved V Type Pharmaceutical Industrial Blender Mixing Machine V-efficiency Mixer 1

Zhanghua - High Quality CE Approved V Type Pharmaceutical Industrial Blender Mixing Machine V-efficiency Mixer 2

Zhanghua - High Quality CE Approved V Type Pharmaceutical Industrial Blender Mixing Machine V-efficiency Mixer 3

Zhanghua - High Quality CE Approved V Type Pharmaceutical Industrial Blender Mixing Machine V-efficiency Mixer 4

Zhanghua - High Quality CE Approved V Type Pharmaceutical Industrial Blender Mixing Machine V-efficiency Mixer 5

Zhanghua - High Quality CE Approved V Type Pharmaceutical Industrial Blender Mixing Machine V-efficiency Mixer 6

Zhanghua - High Quality CE Approved V Type Pharmaceutical Industrial Blender Mixing Machine V-efficiency Mixer

Name: Zhanghua - High Quality CE Approved V Type Pharmaceutical Industrial Blender Mixing Machine V-efficiency Mixer
Brand: Zhanghua Dryer

The adoption of technology allows to deliver leading production efficiency.So High Quality CE Approved V Type Pharmaceutical Industrial Blender Mixing Machine stands for brand-name products in the field of V-efficiency Mixer.

Customization:

Material (Min. Order: 1 sets),Size (Min. Order: 1 sets),Function (Min. Order: 1 sets)

shipping:

Express Sea freight · Land freight · Air freight

Inquiry

Write a Review

What you are witnessing here is the excellent Reactors,Drying Equipment,Mixing Machine,Crystallizer,Agitated Nutsche Filter Dryer of Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd.It is expected that it will lead the industry trend. High Quality CE Approved V Type Pharmaceutical Industrial Blender Mixing Machine with reasonable price, excellent performance and excellent quality, it has won wide recognition from customers. The research and development of High Quality CE Approved V Type Pharmaceutical Industrial Blender Mixing Machine has further improved the company's market competitiveness.

Mixer Type:	Paddle	Barrel Volume (L):	2500 L
Max. Loading Volume (L):	5000 L	Max. Loading Capacity:	5000L
Weight (KG):	550 KG	Condition:	New
Product Type:	Blender Mixing Machine	Application:	Powder, Medicine Processing, Chemicals Processing, Food Processing
Place of Origin:	Jiangsu, China	Brand Name:	Zhang
Voltage:	Customization	Dimension(LWH):	Customization
Power (kW):	22 kW	Warranty:	1 Year
Key Selling Points:	Automatic	Applicable Industries:	Chemical / pharmaceutical industry
Showroom Location:	None	Marketing Type:	New Product 2020
Machinery Test Report:	Provided	Video outgoing-inspection:	Provided
Warranty of core components:	1 Year	Core Components:	Pressure vessel
Product name:	Powder Mixer Machine	Material:	SS316
Machine Type:	Industiral Blender Mixer Machine	After-sales Service Provided:	Online support
After Warranty Service:	Online support	Local Service Location:	None
Certification:	GMP/CE/PED/ASME/GB150

Zhanghua - High Quality CE Approved V Type Pharmaceutical Industrial Blender Mixing Machine V-efficiency Mixer 7

Products Description

V-EFFICIENCY MIXER

V-type high efficient mixer is an international widely used powder andgranular materials mixer. It owns advantages as simple structure, easyoperation, convenient maintenance and cleaning, high speed, good mixingeffect, etc.It is an ideal mixing equipment that can be widely used in magnetic materials, powder metallurgy, pharmaceutical, chemical,foodand other industries

Working Principle

It is suitable for mixing the material with good fluidity and the powder with small differences in physical properties.Also it applies to the material with low requirement of mixing ratio and short mixing time. It will not damage the form of the material because the material in the Vtype mixer flows smoothly. Therefore, V-type mixer also applies to mix the granular material that is easily broken and easily wearing. And it is suitable for mixing the finer powder, lump and moisture materialThis design absorbs advantages of domestic and foreign similar products. Due to the different material plane and transverse force, it can promote the material with lateral interaction.When the mixer is rotated, the material status is from separation to combination and then from combination to separation. The lateral force makes about 25% of the material from one bucket to another one by each circle. In this way, the material is mixed in transversely and longitudinally, so that the material can reach a very uniform mixing effect.

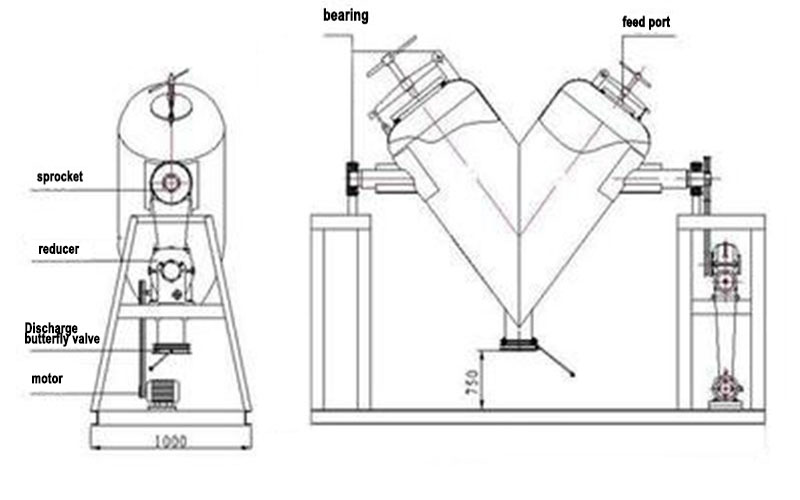

Zhanghua - High Quality CE Approved V Type Pharmaceutical Industrial Blender Mixing Machine V-efficiency Mixer 10

Technical Parameter

Model	Maximum loading (L)	Diameter (mm)	Speed	Height of discharge outlet (mm)	*LWH* （mm）	power
V-20	10	200	15	550	1150380925	0.37
V-30	15	250	15	550	1250400960	0.37
...	...	..	...	...	...	...
V-10000	5000	1750	8	800	650026004500	37

Design / Calculation Software

Zhanghua - High Quality CE Approved V Type Pharmaceutical Industrial Blender Mixing Machine V-efficiency Mixer 11

You May Like

Zhanghua - High Quality CE Approved V Type Pharmaceutical Industrial Blender Mixing Machine V-efficiency Mixer 12

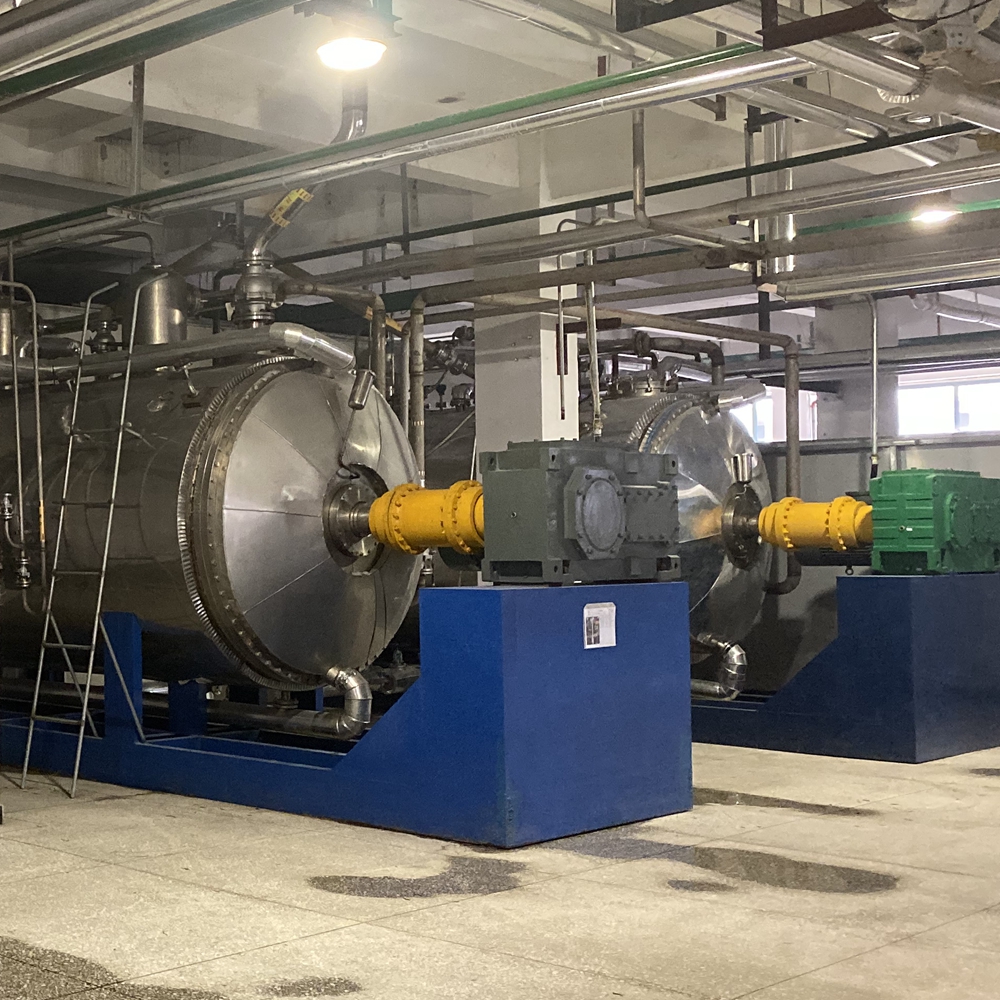

Zhanghua - High Quality CE Approved V Type Pharmaceutical Industrial Blender Mixing Machine V-efficiency Mixer 13

Zhanghua - High Quality CE Approved V Type Pharmaceutical Industrial Blender Mixing Machine V-efficiency Mixer 14

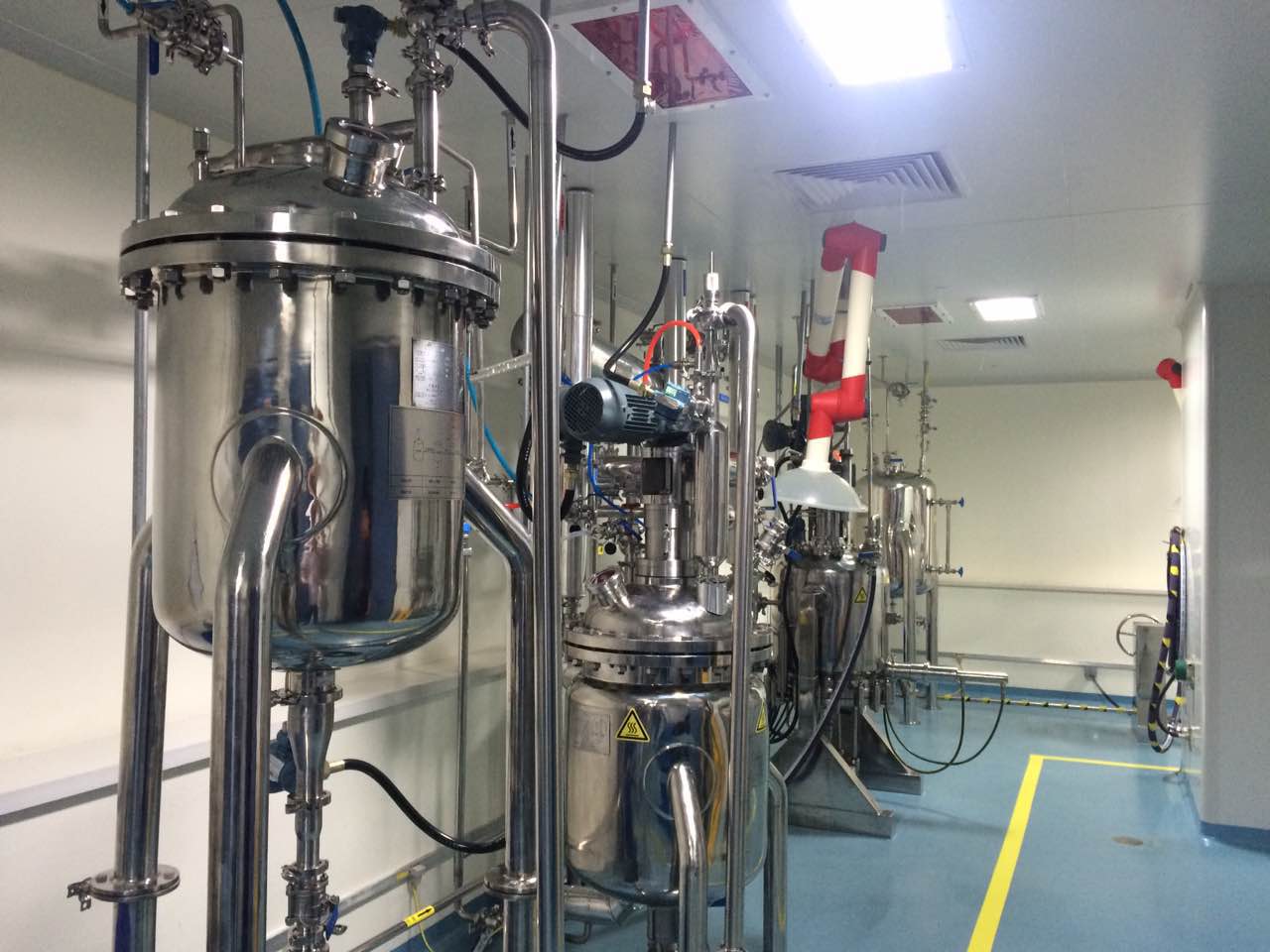

Zhanghua - High Quality CE Approved V Type Pharmaceutical Industrial Blender Mixing Machine V-efficiency Mixer 15
