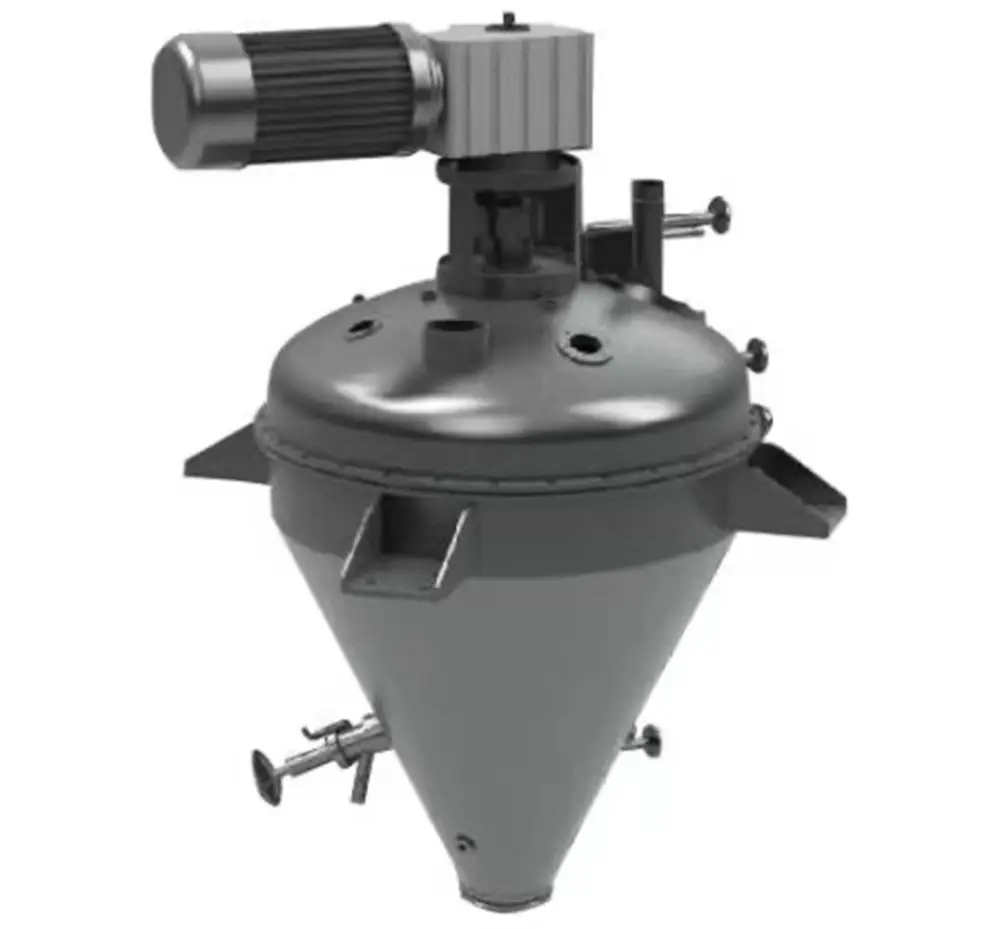

Zhanghua - SS304, SS316 Manufactured Double Screw Conical Mixer Dryer/Vertical Ribbon Blender vertical tapered mixer

As an innovation-driven company,Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd has been devoted to product development for years. We are proud and excited as well to announce that we have successfully developed SS304, SS316 Manufactured Double Screw Conical Mixer Dryer/Vertical Ribbon Blender. In today's era,SS304, SS316 Manufactured Double Screw Conical Mixer Dryer/Vertical Ribbon Blender has proved its value in the field(s) of Mixing Equipment. It is technologies that keep a company stands out from other competitors.Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd will focus on improving our currently-used manufacturing technologies and will never stop innovating and developing our own core technologies. We hope that one day we will become a leader in the industry.

Products Description

Main Application

This series of machine is one high efficient mixing equipment, which is widely applied in mixing solid-solid status materials(powder-powder), as well as mixing solid-liquid status materials (powder materials added with liquid materials) from the chemical,pharmaceutical,fertilizer,dye,metallurgy,mine,food,monosodium glutamate,fodder industries.
This equipment is adaptable and flexible to the mixture, cannot cause heat sensitive materials overheated and cannot grate partical materials.

Working Principle

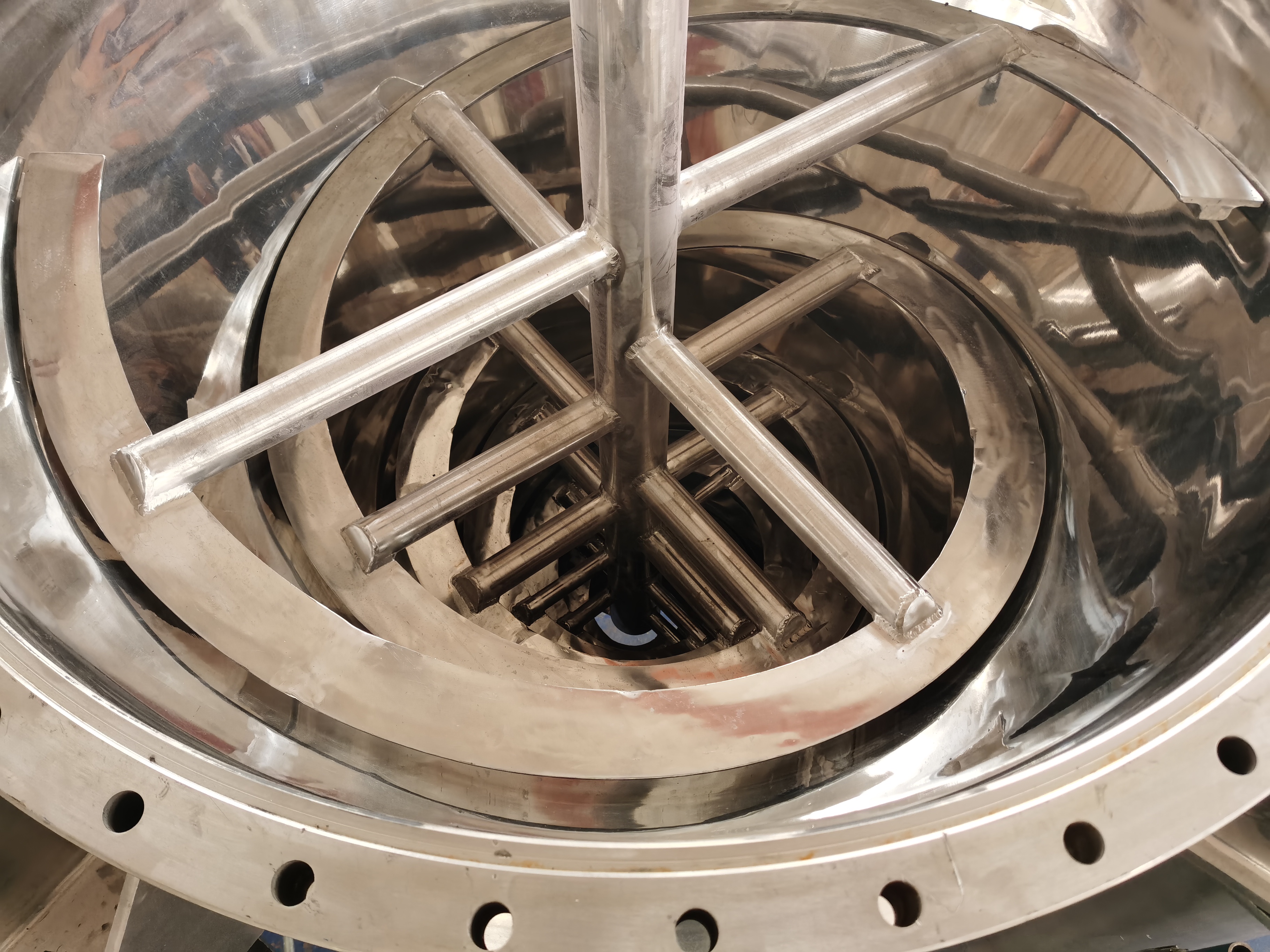

the machine is mainly composed of mixing tank, spiral agitating vane and transmission parts. There are two layers of spiral agitating vane. The outside vanes accumulate the material from side to center, while the inner vanes separate the material from center to side. So that material will mix to each other in convective mixing inside the tank.

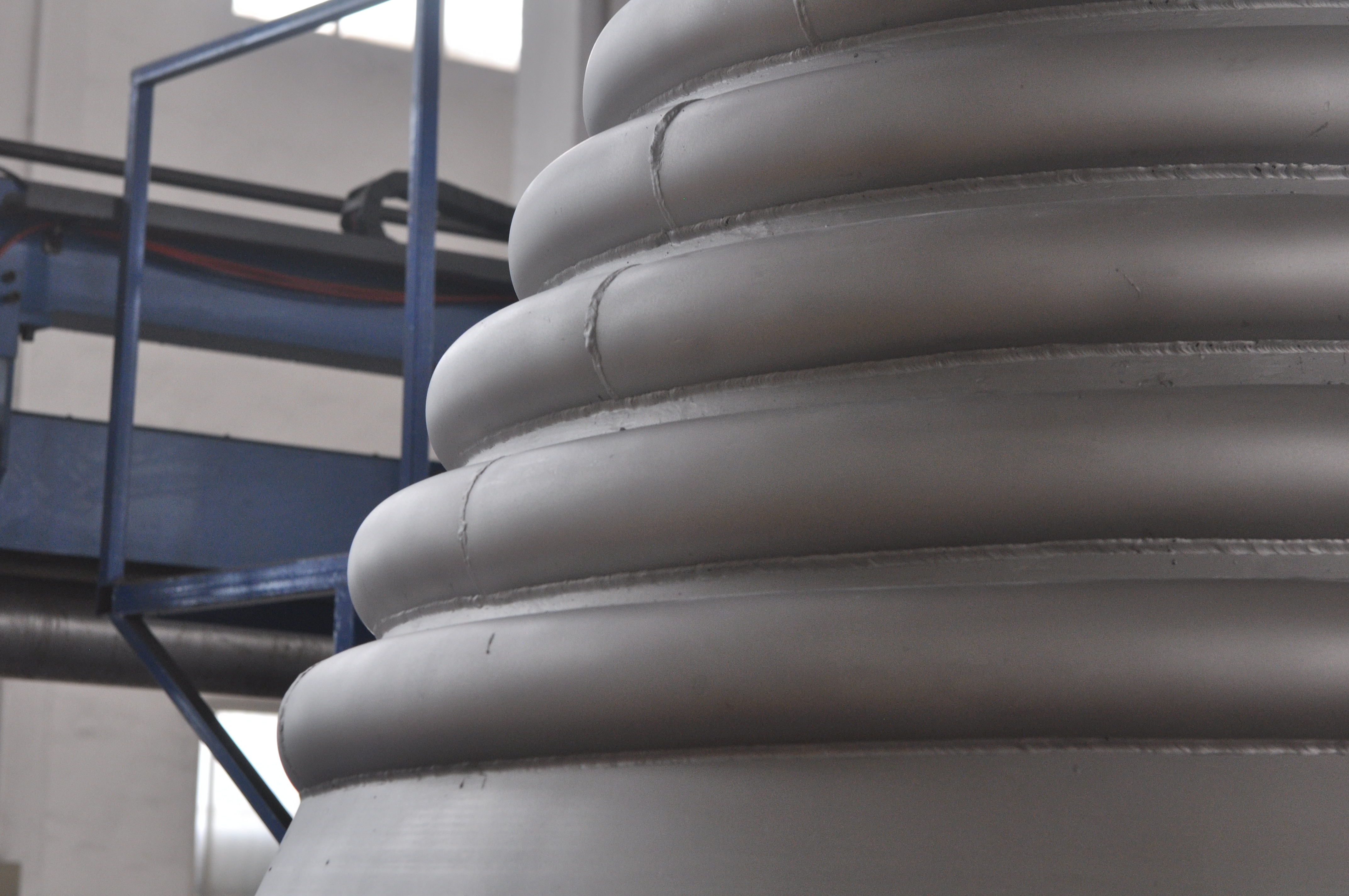

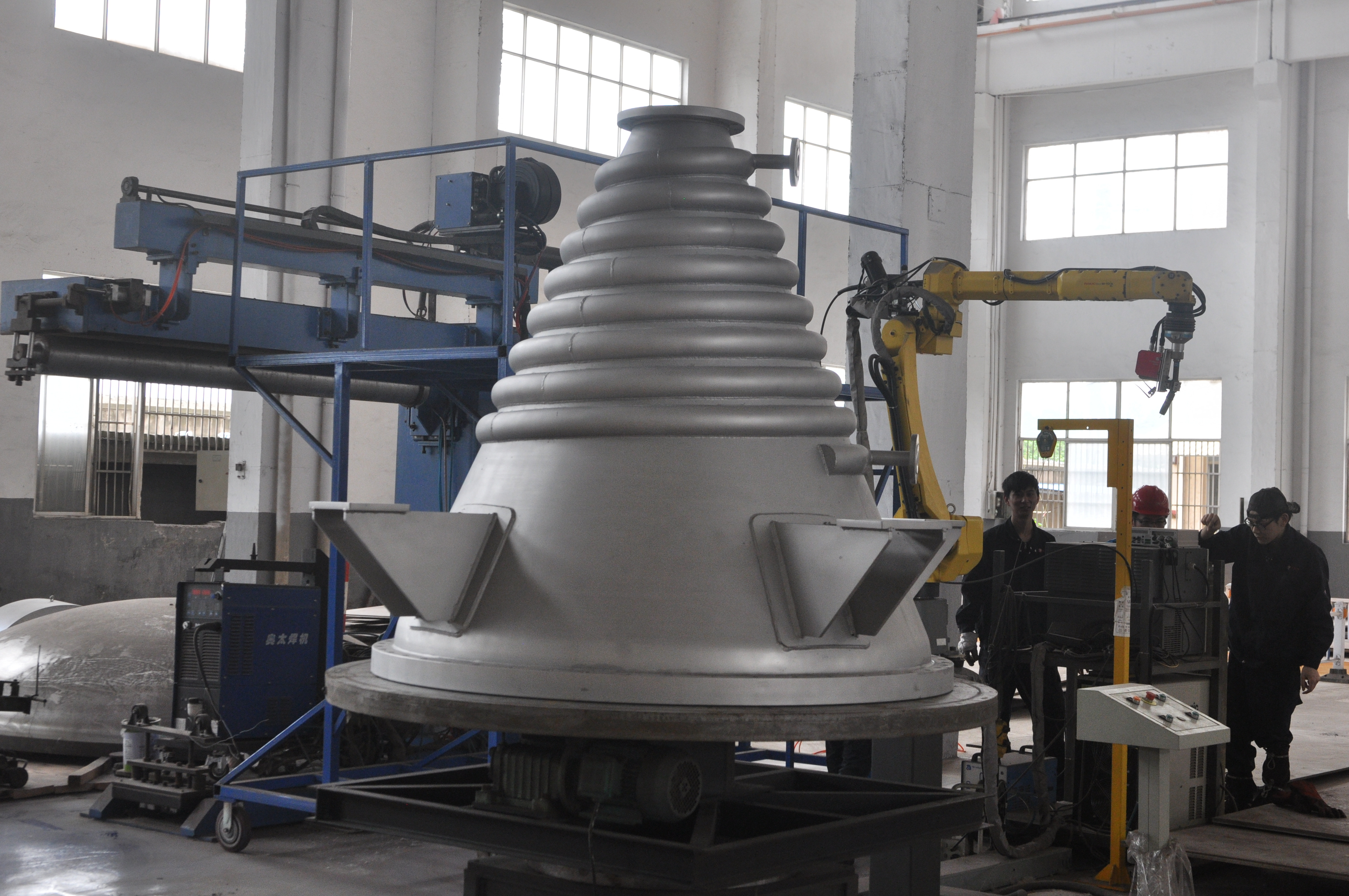

Semi-finished Products

Technical Parameter

Model	CW-180	CW-300	CW-500	CW-1000	CW-2000	CW-3000	CW-4000
Power(Kw)	1.1	1.1	2.2	4	7.5	11	11
Capacity(kg/batch)	40	60	100	200	400	600	800
Total volume	0.18	0.3	0.5	1	2	3	4
Mixing time(min)	4-8	6-10	6-10	6-10	6-10	6-10	6-10
Speed(r/min)	12	12	12	10	10	8	8

Design / Calculation Software

Custom Service

➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)

2. Crystallizing Tank, Reaction Kettle
3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Vacuum Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials,

Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,
Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤Scope of business
1. On-site Inspection
2.Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts
