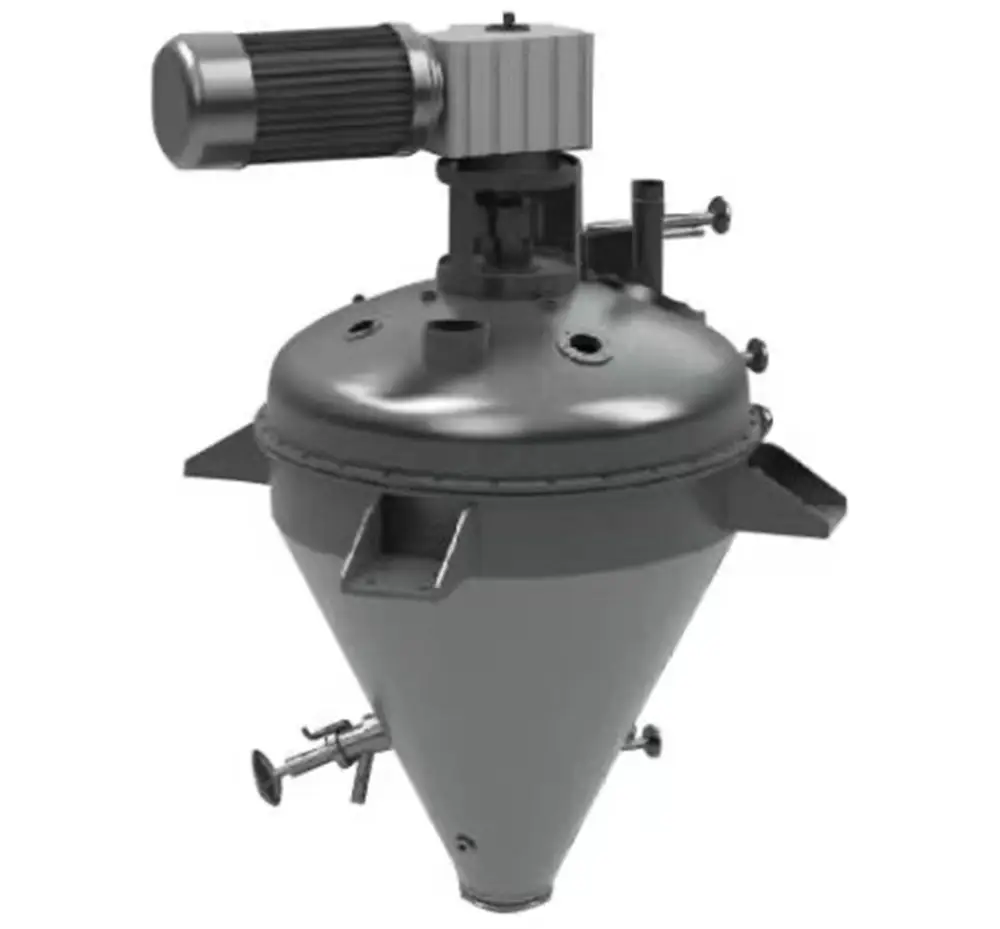

Zhanghua - Double Helix Conical Blender Dryer/ Ribbon Conical Double Helix Screw Mixer vertical Dry Powder Mixer

Double Helix Conical Blender Dryer/ Ribbon Conical Double Helix Screw Mixer vertical Dry Powder Mixer companies spend so much time coming up with various products to reach diverse consumer needs. The research and development team is the core competence to Double Helix Conical Blender Dryer/ Ribbon Conical Double Helix Screw Mixer vertical Dry Powder Mixer. It enables us to become a leader in the vertical tapered mixer. Reflecting the latest industry trend and development, our Double Helix Conical Blender Dryer/ Ribbon Conical Double Helix Screw Mixer vertical Dry Powder Mixer is designed to be attractive enough to catch people's attention. Moreover, it has some excellent characteristics, which makes it more value-added. In this competitive market, this Mixing Equipment has the greatest appreciation space.

Products Description

Main Application

This series of machine is one high efficient mixing equipment, which is widely applied in mixing solid-solid status materials(powder-powder), as well as mixing solid-liquid status materials (powder materials added with liquid materials) from the chemical,pharmaceutical,fertilizer,dye,metallurgy,mine,food,monosodium glutamate,fodder industries.
This equipment is adaptable and flexible to the mixture, cannot cause heat sensitive materials overheated and cannot grate partical materials.

Working Principle

the machine is mainly composed of mixing tank, spiral agitating vane and transmission parts. There are two layers of spiral agitating vane. The outside vanes accumulate the material from side to center, while the inner vanes separate the material from center to side. So that material will mix to each other in convective mixing inside the tank.

Semi-finished Products

Technical Parameter

Model	CW-180	CW-300	CW-500	CW-1000	CW-2000	CW-3000	CW-4000
Power(Kw)	1.1	1.1	2.2	4	7.5	11	11
Capacity(kg/batch)	40	60	100	200	400	600	800
Total volume	0.18	0.3	0.5	1	2	3	4
Mixing time(min)	4-8	6-10	6-10	6-10	6-10	6-10	6-10
Speed(r/min)	12	12	12	10	10	8	8

Design / Calculation Software

Custom Service

➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)

2. Crystallizing Tank, Reaction Kettle
3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Vacuum Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials,

Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,
Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤Scope of business
1. On-site Inspection
2.Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts
