Always striving toward excellence, Zhanghua has developed to be a market-driven and customer-oriented enterprise. We focus on strengthening the capabilities of scientific research and completing service businesses. We have set up a customer service department to better provide customers with prompt services including order tracking notice. powder mixer machine Zhanghua is a comprehensive manufacturer and supplier of high-quality products and one-stop service. We will, as always, actively provide prompt services such. For more details about our powder mixer machine and other products, just let us know.The product has overload protection function for its components. During the design, it is built with a thermal overload relay to guard against the damage caused by long-term overload operation.

We always create a perfect quality of product at prices that meet a customer’s budget. Large Capacity And High Precision Stainless Steel Vertical Tapered Homogenizer Mixer Powder Mixer has made great technological breakthroughs because technicians often hold training and technical exchanges to improve professional skills. Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd will continue to adopt scientific and advanced marketing strategies to focus on market expansion, forming a complete sales network across the world. Moreover, we will pay more attention to the talents gathering, ensuring innovative and competitive wisdom is distilled for the long-term development of our company.

Products Description

Main Application

This series of machine is one high efficient mixing equipment, which is widely applied in mixing solid-solid status materials(powder-powder), as well as mixing solid-liquid status materials (powder materials added with liquid materials) from the chemical,pharmaceutical,fertilizer,dye,metallurgy,mine,food,monosodium glutamate,fodder industries.
This equipment is adaptable and flexible to the mixture, cannot cause heat sensitive materials overheated and cannot grate partical materials.

Working Principle

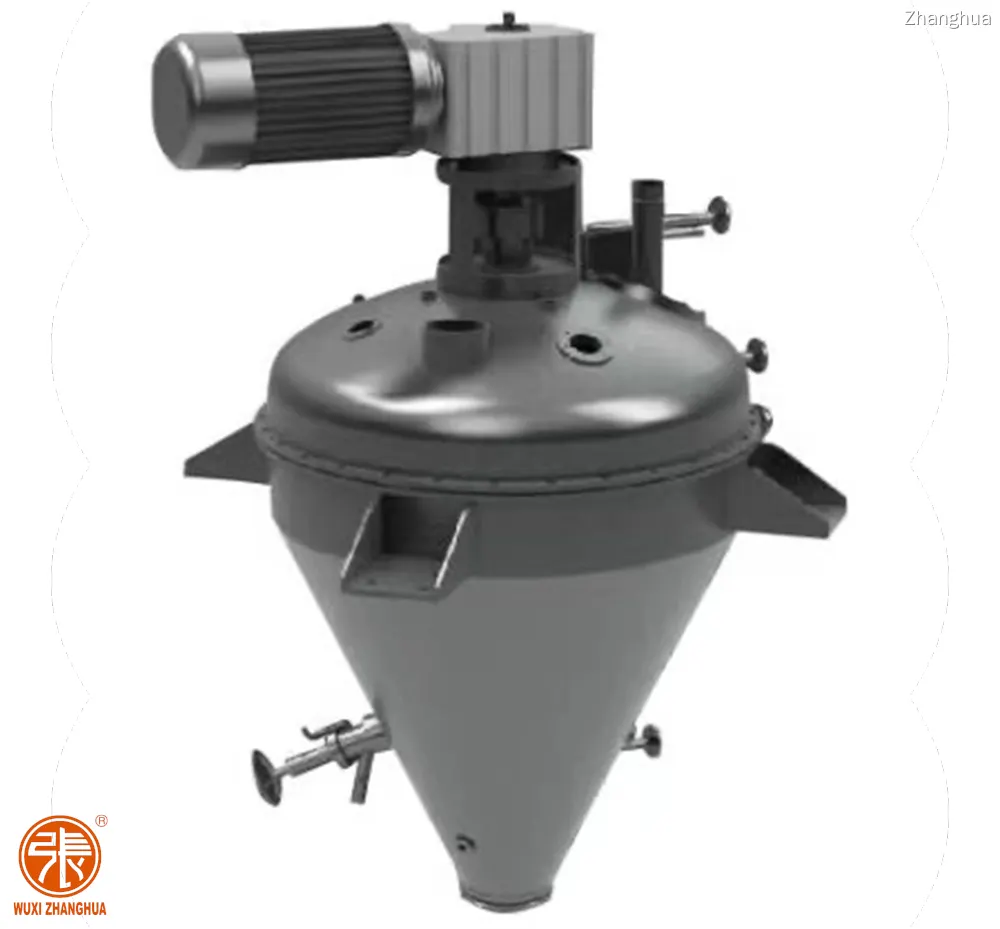

the machine is mainly composed of mixing tank, spiral agitating vane and transmission parts. There are two layers of spiral agitating vane. The outside vanes accumulate the material from side to center, while the inner vanes separate the material from center to side. So that material will mix to each other in convective mixing inside the tank.

Semi-finished Products

Technical Parameter

Model	CW-180	CW-300	CW-500	CW-1000	CW-2000	CW-3000	CW-4000
Power(Kw)	1.1	1.1	2.2	4	7.5	11	11
Capacity(kg/batch)	40	60	100	200	400	600	800
Total volume	0.18	0.3	0.5	1	2	3	4
Mixing time(min)	4-8	6-10	6-10	6-10	6-10	6-10	6-10
Speed(r/min)	12	12	12	10	10	8	8

Design / Calculation Software

Custom Service

➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)

2. Crystallizing Tank, Reaction Kettle
3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Vacuum Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials,

Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,
Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤Scope of business
1. On-site Inspection
2.Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts
