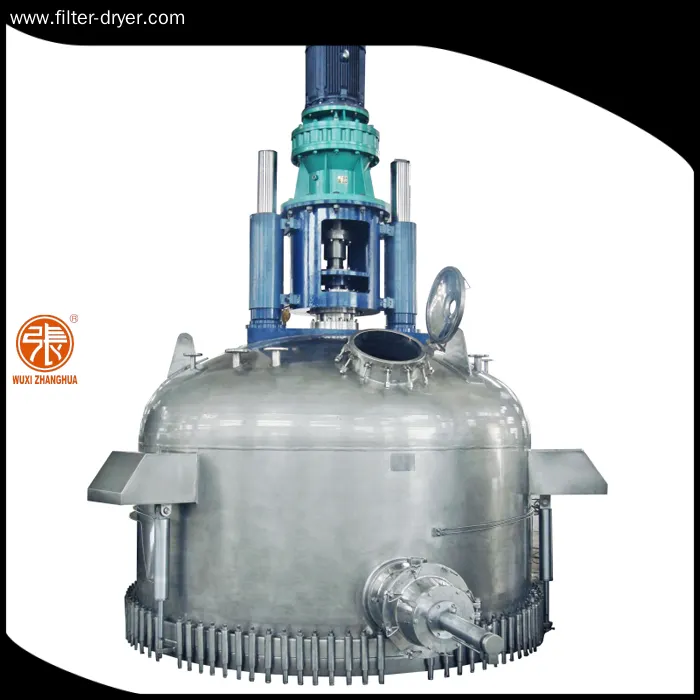

Zhanghua | OEM agitated nutsche filter dryer supplier

Set up years ago, Zhanghua is a professional manufacturer and also a supplier with strong capabilities in production, design, and R&D. agitated nutsche filter dryer If you are interested in our new product agitated nutsche filter dryer and others, welcome you to contact us.This product has the required precision. It provides enough dynamic precision for the program without any human error.

At Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd, the efforts of all our employees have resulted in the steady improvement of our R&D capabilities and the launch of Multifunction Pharmaceuticals IngredientsAgitated Nutsche Filter Vacuum Filter Other Industrial Filtration Equipment has passed a series of international quality assurance system and product safety certification . Research and development are the pillars on which the future of our company rests. Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd will put more emphasis on improving our R&D strength in the future for developing more creative and competitive new products.

Products Description

Applications and Features

Material: SS304, SS316L, Ti, Hastelloy-C, PTFE lined or other materials

Applications：It is widely applied in the industries, such as pharmaceutical, chemical engineering, agrochemical, food, etc. It can realize the continuous operation in vacuum, and even more suitable for producing sterile and poisonous products.

 Filtering and Washing

 “two in one” device

Filtering stage

The separation of filter cake and mother liquid. The thickness of filter cake can reach 500mm.

Washing stage

Further purification of filter cake, rinse and dehydration of mother liquid remained. Mix the lotion and the filter cake via up and down of agitator to make the filter cake slurry finally, then the filter cake can get the full wash.

Main Characteristics

➤The whole vessel is designed and manufactured according to the pressure vessel standard.
➤It can work in closed environment in the whole process.
➤At the filtering stage, it mainly relied on vacuum on the bottom of the vessel. In order to improve the filtering efficiency,pressure can be brought into the vessel, but generally less than 0.3 MPa.

➤After the filter cake is dried, it’s in high density, so the S-type blade looses the filter cake though the anticlockwise rotation, ascending and descending.
➤At the washing stage, the materials in the vessel can be totally washed through the clockwise rotation, up and down by the S-type blades.
➤The bottom plate is not removable. The supporting network and punching plate on the bottom plate can not only help liquid flow,but also make installing filter cloth easier.

➤Filter cloth, non-woven cloth and sintering net can be used as the medium of filtration.
➤Products are discharged through S-type blades automatically from the side discharge outlet.
➤Clockwise and anticlockwise rotation of the agitator are driven by motor reducing gear, and regulate the ascending and descending speed. Both domestic and imported reducers are acceptable.Filter cloth, non-woven cloth and sintering net can be used as the medium of filtration.

Product Details

Customer Site

Pharmaceutical Industry

Chemical Industry

New Energy Industry

Technical Parameter

Specification	capacity（m³）	Filter area（m³）	Mixing Travel(mm)	Motor Power(kw)
φ1000	1.2	0.8	300	5.5
φ1200	1.5	1	300	5.5
...	...	...	...	...
φ4600	30	16	550	75

Design / Calculation Software

Custom Service

➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)

2. Crystallizing Tank, Reaction Kettle
3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Vacuum Dryer
5. Plate-fin Heat Exchanger
➤Our advantage

1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,

Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤Scope of business
1. On-site Inspection
2.Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts
