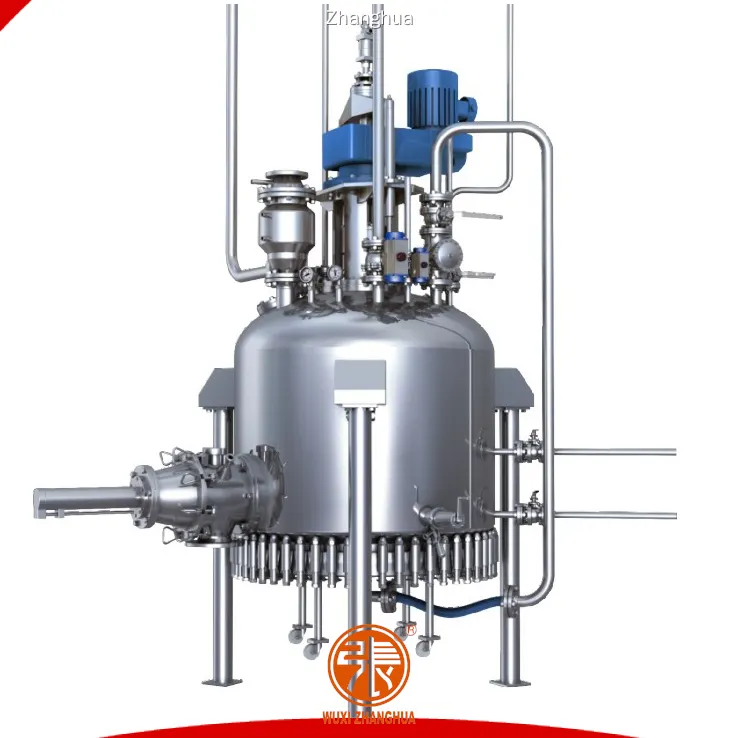

After years of painstaking research, Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd’s technicians have successfully developed Superior Quality Custom-made ANFD Agitated Nutsche Filter Dryer Pressure Vessel. The Superior Quality Custom-made ANFD Agitated Nutsche Filter Dryer Pressure Vessel launched by the company are made using the company's newly developed advanced technology, which perfectly solves the long-standing pain points of the industry. Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd will always stick to the business principle of 'quality first, customers foremost' and strive towards building an even more competitive and capable company aiming for an even better future.

Products Description

Applications and Features

Material: SS304, SS316L, Ti, Hastelloy-C, PTFE lined or other materials

Applications:It is widely applied in the industries, such as pharmaceutical, chemical engineering, agrochemical, food, etc. It can realize the continuous operation in vacuum, and even more suitable for producing sterile and poisonous products.

Process and structure

➤Filtering stage: The separation of filter cake and mother liquid. The thickness of filter cake can reach 500mm.
➤Washing stage: Further purification of filter cake, rinse and dehydration of mother liquid remained. Mix the lotion and the filter cake via up and down of agitator to make the filter cake slurry finally, then the filter cake can get the full wash.
➤Drying stage: Dehydrating and drying the filter cake. Agitator will scrape filter cake loose by layers while the sidewall; the bottom of filter plate and agitator will heat the filter cake at the same time. Moreover, the vacuum inside the equipment will accelerate the evaporating speed; the entered hot nitrogen will take away the damp and accelerate the speed of desiccation.

▾Bottom plate structure: :SUS304/316L
▾Filter plate: sintered plate/filter cloth (normally 5~50 um)
▾Dead angle of filter cloth: 25mm single side
▾Flatness degree of single plate: ±1mm/m

Product Details

Main Characteristics

➤“All in One”
All the steps, including filtering, washing and drying, can be completed in one set of equipment. Drying treatment can be realized due to the heating jacket on the equipment.
➤Continuous operation
As filtering and drying is operated in one set of equipment, so there is no need to deal with wet filter cake. The final dry products can be transferred to weighing, packaging and other sections by machines.

➤Saving labor cost
Non-technical staffs only need to take simple training of operation. Technicians do not have to monitor the process all the time,including opening, closing, automatic feeding and discharging.
➤Proper cleaning
Agitated Nutsche Filter Dryer (filtering, washing and drying) sprays and stirs automatically, so filter cake can be properly cleaned while the amount of sewage and the cost of wastewater treatment can be reduced.
➤Clean Production
The dust catcher on the multifunctional filtering and drying equipment can collect dust after drying process, which meets the requirement of clean production.

Customer Site

Pharmaceutical And Chemical Industry

Technical parameters

Specification	Capacity(m³)	Filtering area(㎡）	Electrical motor power(kw)
φ800	0.6m³	0.5㎡	4kw
φ1000	1.2m³	0.8㎡	5.5kw
φ1200	1.5m³	1㎡	5.5kw
φ2000	4m³	3㎡	11kw
φ3000	10.2m³	7㎡	22kw
φ4000	22m³	13㎡	45kw
...
φ4600	30m³	16㎡	75kw

Our Advantage

Zhanghua VS Other	New advanced airtight technology, vacuum ≤ 50PA，Improve the quality of user products, can be used in the production of aseptic grade products
		Quick open chassis，The maximum size is 3000mm diameter fast opening chassis，Save time and manpower, safe operation, simple and easy
		Design of combined outlet，More reliable sealing performance, high safety, even power failure will not leak
		High precision synchronization of stirring, chassis lifting, chassis locking，Improve the transmission precision of the equipment, increase the service life and safety reliability
		PLC and DCS automatic control，Save time and manpower, safe operation, simple and easy
		On - line monitoring of main shaft bellows，Detect the leakage at the first time, and take corresponding measures to reduce the loss of materials
		On line cleaning of vacuum filter, complete on line cleaning of highest parts of equipment with minimum cleaning fluid
		European technology, China's earliest three-in-one manufacturer，Reliable performance, 20 years of experience, has been produced no less than 300

Design / Calculation Software

Custom Service

➤Our Products for pharmaceutical and chemical industries

1. Multifunctional “Three in One” (filtering, washing and drying) 2. Crystallizing Tank, Reaction Kettle 3. Sterile double-cone dryer 4. Rake Vacuum Dryer/Paddle Vacuum Dryer 5. Plate-fin Heat Exchanger

➤Our advantage

Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment

Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel, etc.

Ti/HC22/Mone11 2. Customized Design: Double-Cone in 20L-20m³ Rake Dryer (with mechanical seal) in 16 m³ DN300-DN600 “Three in One” 3. Design/Calculation Software

➤Scope of business

1. On-site Inspection 2. Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service 3. Maintenance 4. Technical Solutions 5. On-site Testing and Training 6. Spare Parts
