Zhanghua | Best stainless steel reaction kettle for foodstuff industry

Guided by scientific and technological innovation, Zhanghua always keeps outward-oriented and sticks to the positive development on the basis of technological innovation. stainless steel reaction kettle We have been investing a lot in the product R&D, which turns out to be effective that we have developed stainless steel reaction kettle. Relying on our innovative and hard-working staff, we guarantee that we offer customers the best products, the most favorable prices, and the most comprehensive services as well. Welcome to contact us if you have any questions.The product has the advantage of high precision. It is specially processed under the lathes which are designed for cutting the metal in the most precise way.

With our fully equipped machines, we can produce Continuous Stirred Tank Reactor Stainless Steel Glass Line Reactor Kettle to your exact specifications. Our Continuous Stirred Tank Reactor Stainless Steel Glass Line Reactor Kettle raw material is pure and high quality providing best results and longer support throughout your use. Guided by market forces,Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd will use a comprehensive range of measures to enhance our strength. For example, we will invest heavily in the R&D project and keep developing new products so as to lead the market trend.

Products Description

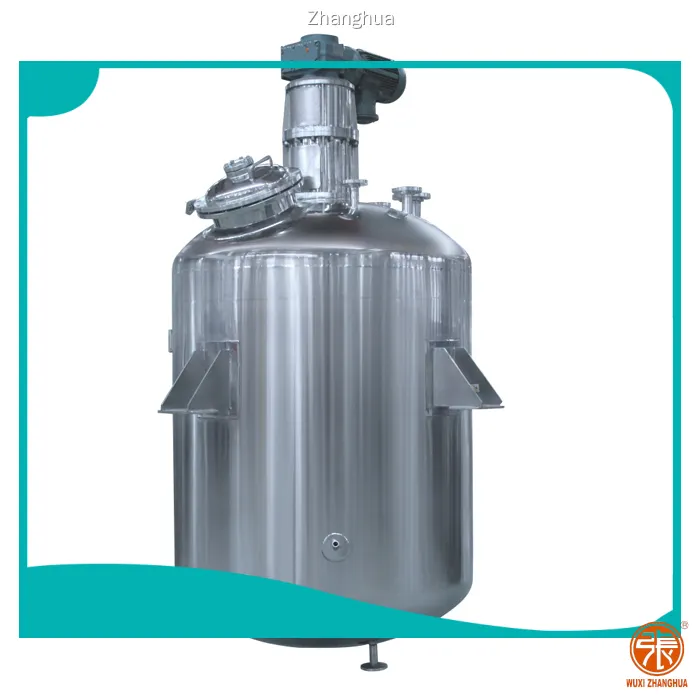

Reaction Kettle

Material：
SS304, SS316L, Titanium, Hastelloy, PTFE lined and other materials

Application：

This equipment is used in the process of hydrolysis,neutralization,crystallization,distillation and evaporation in pharmaceutical,chemical, food, light and other industries.

Structural Feature

➤The reaction kettle is composed of kettle body, kettle cover, agitator, heating jacket, supporting and driving devices, seal devices, and etc. and equipped with electric heating rods.

➤Considering clients’ different producing technology and operating conditions, usually mixing patterns are divided into anchor,propeller, turbo, push or frame. The support seat has two kinds, hanging or back supporting type. There are holes for oil in and out, venting, and temperature monitoring in the jacket. At the bottom of the kettle, there is a discharge hole.Cycloidal pinwheel reducer, variable-speed reducer and others could be applied in the rotating mechanism. The sealing device can use machines; Sleeve, semi-tube and coil pipe structure can be used in heating and cooling. There are several heating mode,such as steam, electric heating, heat conduction oil, etc. In order to meet different requirements of acid-and alkali-proof,high temperature resistance, wear resistance, corrosion resistance and others under diffrent working environments, reaction kettles can be designed and manufactured based on clients’ requests.

Operating Requirements

➤Materials of the reaction kettle are heated by jacket.
➤The vent pipe installed in the upper part of the jacket should be unblocked.
➤Oil should be slowly heated, especially in the first warming period, you should pay attention to preventing oil and steam from blasting boiling.
➤If there are no materials (heat absorbing medium) in the kettle, don’t heat jacket for testing.
➤The heating speed and insulation status(on/off) can be adjusted by valves or temperature controller

Welding Field

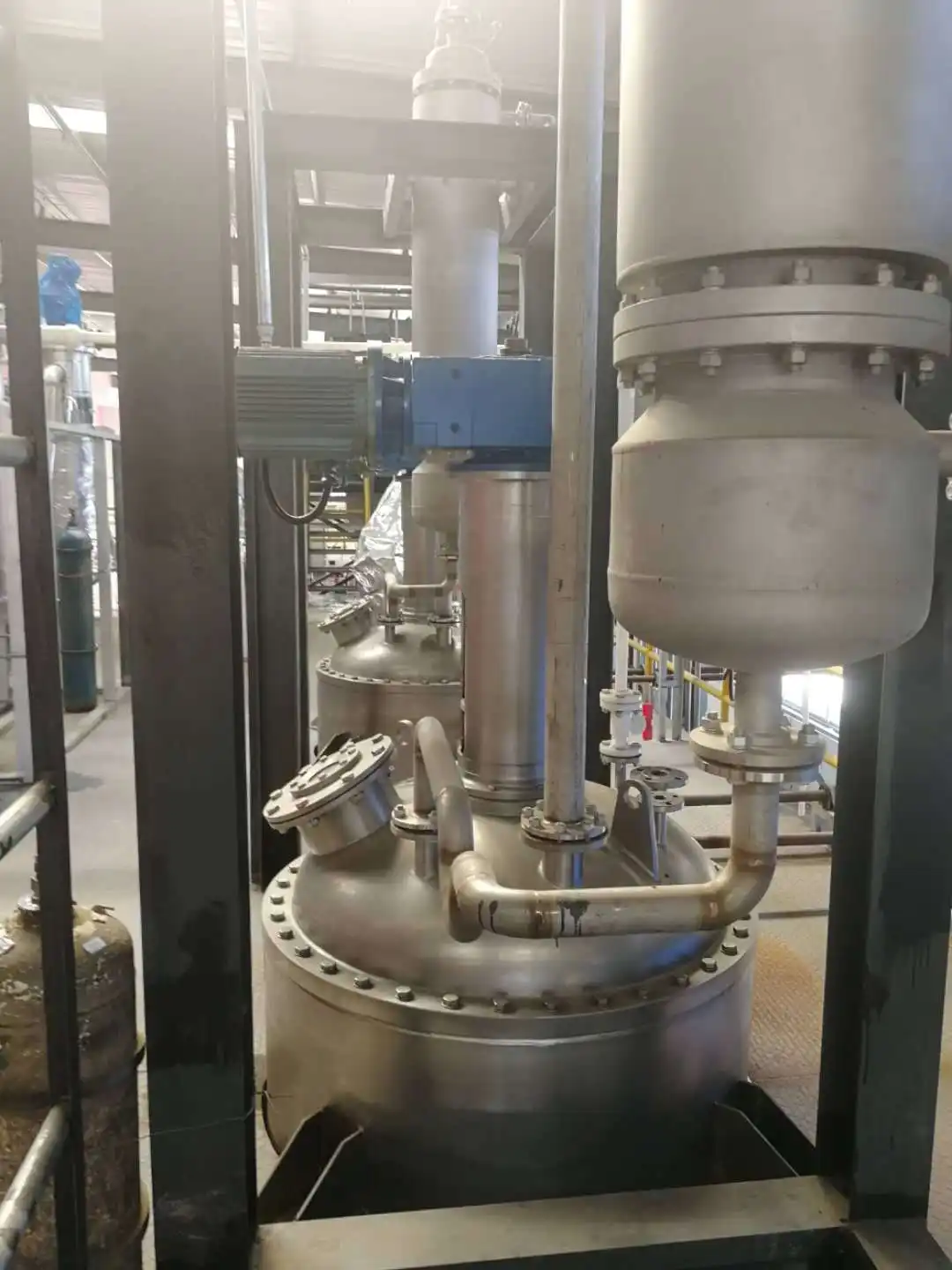

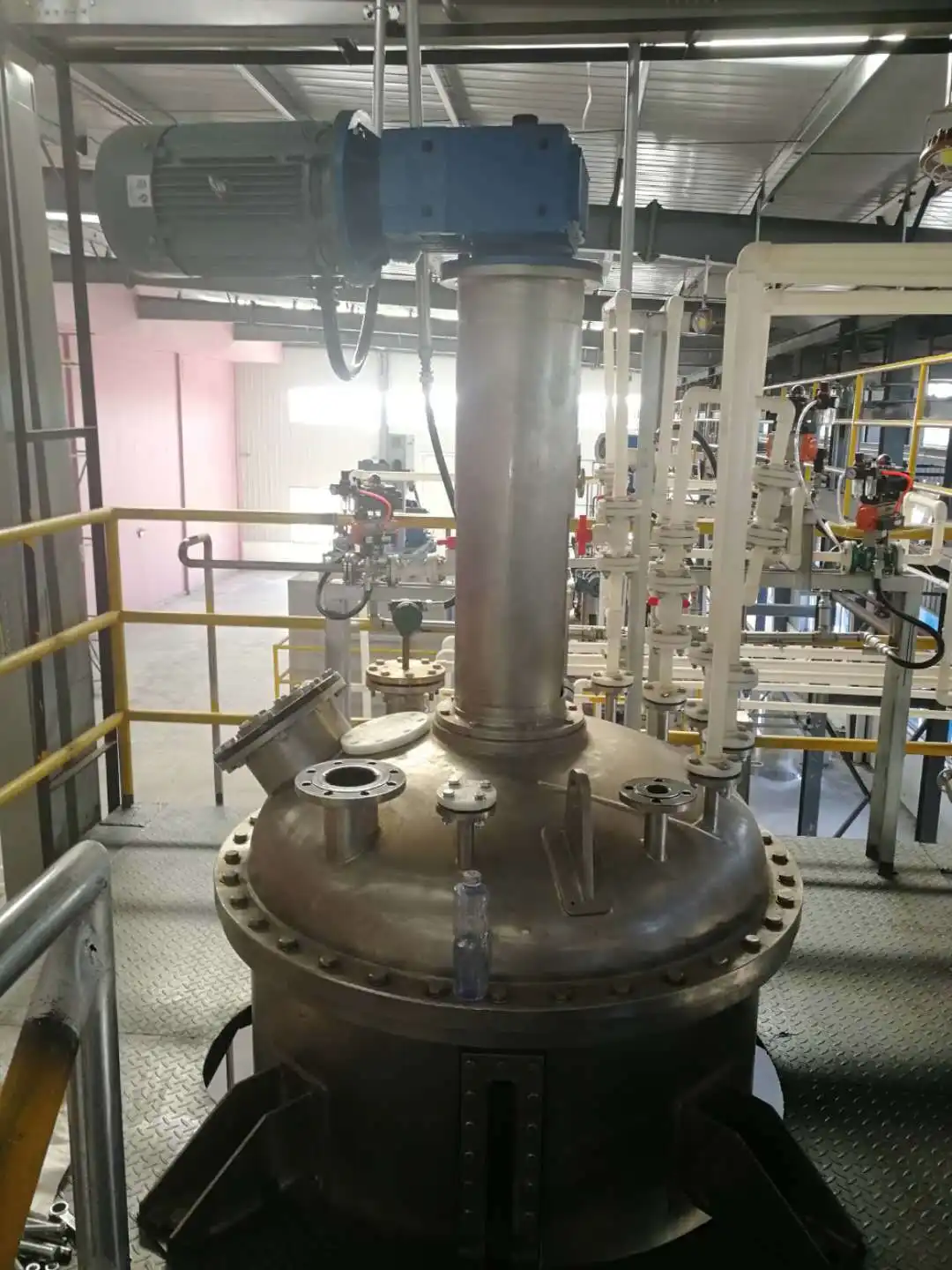

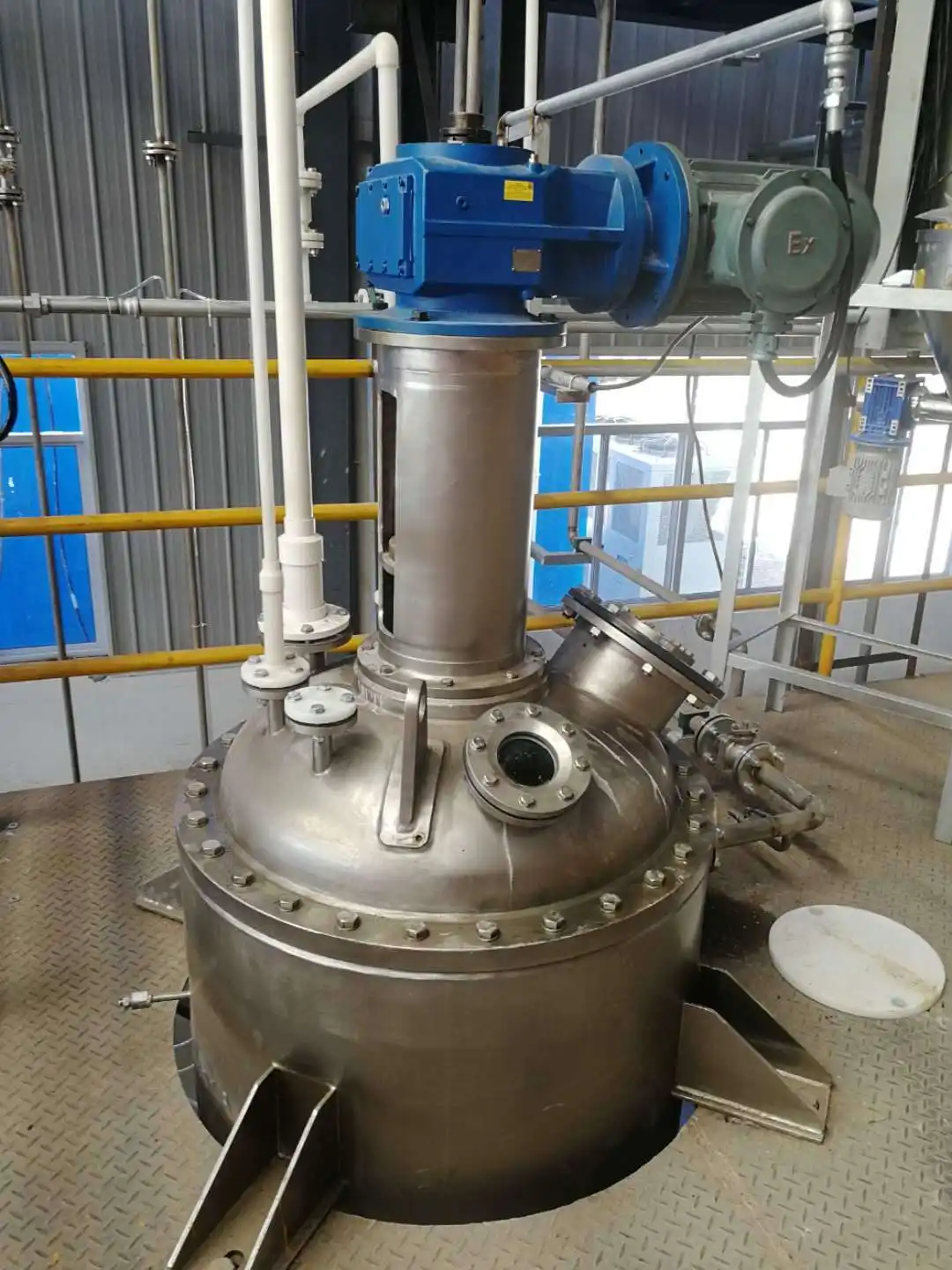

Customer Site

Pharmaceutical Industry

Technical Parameter

Specification (L)	Inner tank diameter (mm)	Jacket diameter (mm)	Motor Power (kw)	Rotational Speed (r.p.m)
30	400	500	0.6-1.1	60-80
50	500	600	0.6-1.1	60-80
...	...	...	...	...
32000	3000	3200	37	50-100

Technical Parameter

Type	Nominal Capacity (L)	Actual Capacity (L)	Tlectro-thermal power	Oil Jacket VOlume (L)	The Size  of the pot(mm)	Jacket Size (mm)	External Size (mm)	Power (n/k)	Mixing Soeed (r.p.m)
DFG50	50	78	4*2KW	96	400	600	824*2015	1450/1.1	80
DFG100	100	127	6*2KW	127	500	700	1004*2120	1450/1.1	80
...	...	...	...	...	...	...	...	...	...
DFG3000	3000	3056	18*5KW	800	1600	1800	2250*4250	1450/4	80

Design / Calculation Software

Custom Service

➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)

2. Crystallizing Tank, Reaction Kettle
3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Vacuum Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,

Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤Scope of business
1. On-site Inspection

2. Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service

3. Maintenance

4. Technical Solutions

5.On-site Testing and Training

6. Spare Parts
