powder mixer machine at Wholesale Prices | Zhanghua
Guided by scientific and technological innovation, Zhanghua always keeps outward-oriented and sticks to the positive development on the basis of technological innovation. powder mixer machine We have been investing a lot in the product R&D, which turns out to be effective that we have developed powder mixer machine. Relying on our innovative and hard-working staff, we guarantee that we offer customers the best products, the most favorable prices, and the most comprehensive services as well. Welcome to contact us if you have any questions.The product features a sturdy structure. Its rugged industrial strength frame makes it not susceptible to any kinds of elements such as shocks and vibration.
Zhanghua specializes in the production of high-quality industrial mixing equipment, including the Double Conical Screw Mixer and Vertical Powder Mixer with Ribbon. These mixers are widely used in various industries for efficient blending of powders and other materials.

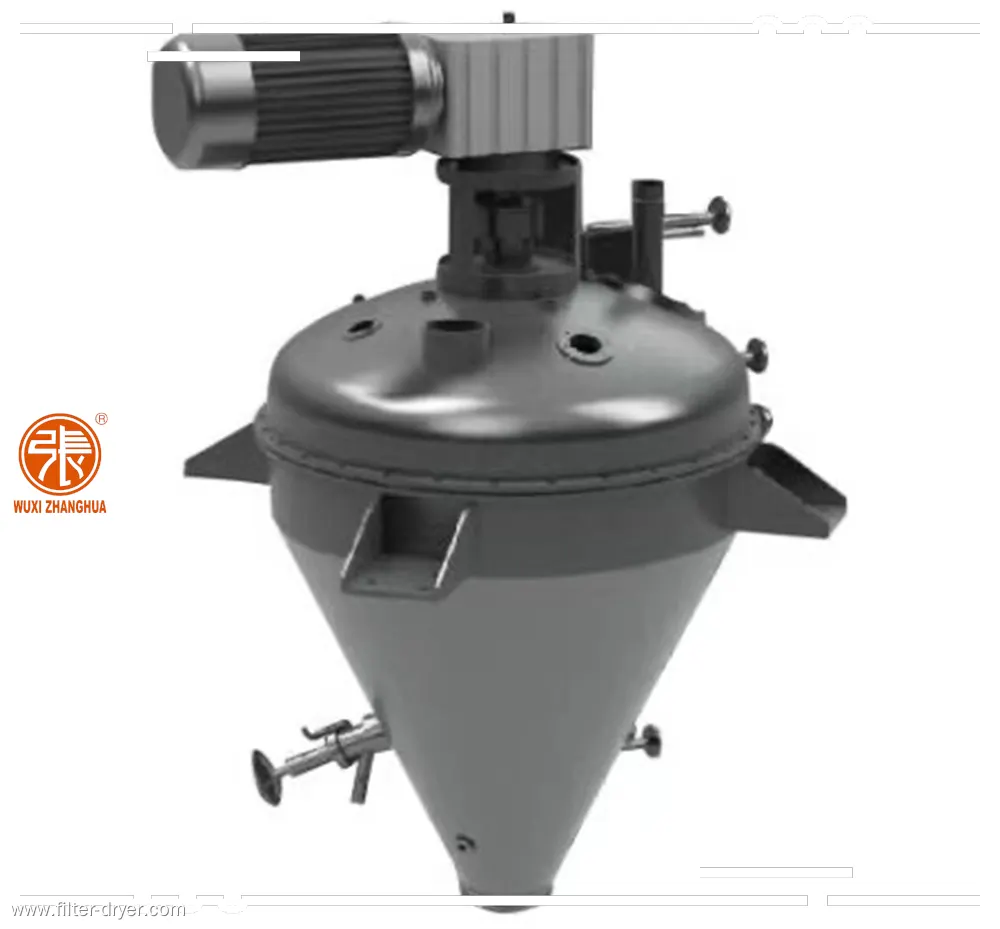

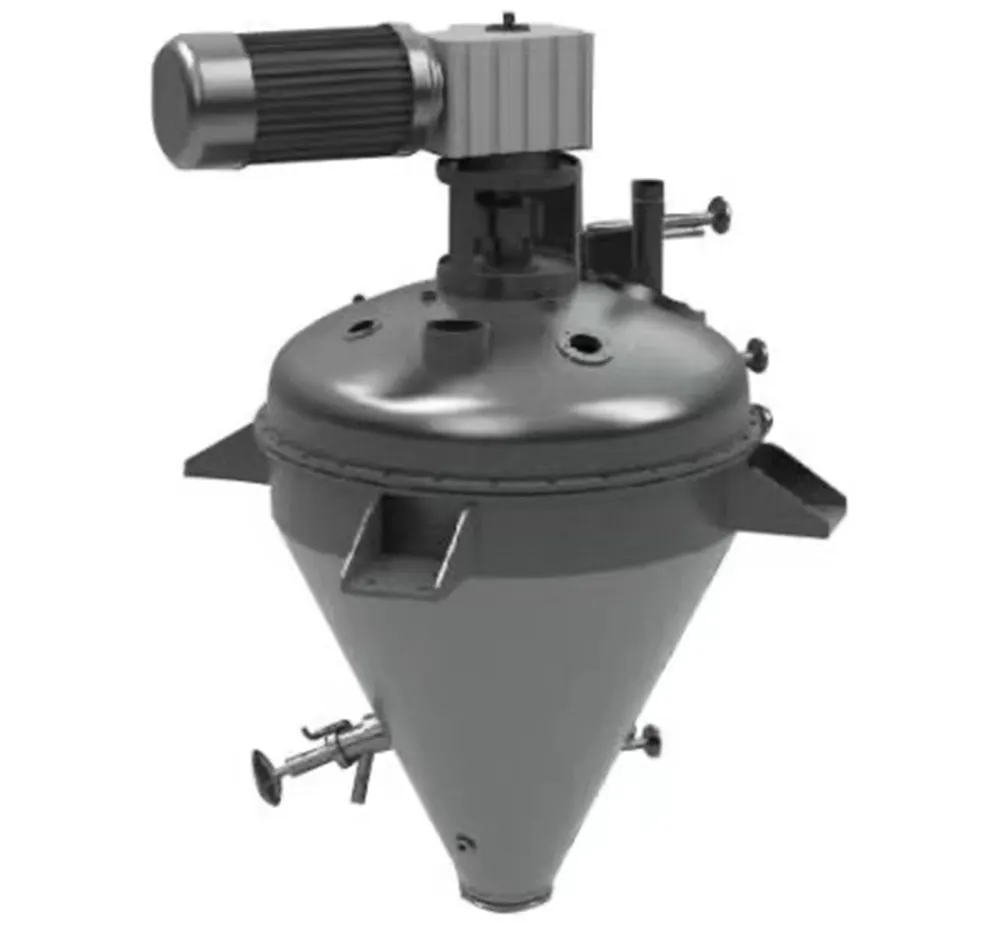

The Double Conical Screw Mixer features a unique design with two conical-shaped vessels and a central rotating screw. This configuration ensures optimal mixing performance by creating a continuous flow pattern and gentle tumbling action. It is suitable for blending materials with different particle sizes and densities.
The Vertical Powder Mixer with Ribbon combines the advantages of a conical screw mixer with the additional functionality of a ribbon mixer. It features a vertical design that enhances mixing efficiency and reduces processing time. The ribbon agitator promotes thorough blending by moving materials both vertically and horizontally within the mixing chamber.
this mixers offer excellent versatility and can handle a wide range of powders and granular materials. They are equipped with advanced control systems for precise operation and can be customized with additional features such as heating or cooling jackets.
Zhanghua's Double Conical Screw Mixer and Vertical Powder Mixer with Ribbon provide reliable and efficient solutions for achieving homogeneous mixtures in industrial applications. With their exceptional mixing capabilities and customizable options, these mixers are essential equipment for optimizing the blending process.
| Mixer Type: | Paddle | Barrel Volume (L): | 20000 |
| Material Processed: | Chemicals, Food, Medicine | Max. Loading Volume (L): | 14000 L |
| Weight (KG): | 786 KG | Material: | SUS304, SUS304L, SUS316, SUS316L, Ti, Stainless Steel 304 / SUS316L |
| Condition: | New | Product Type: | Mixer |
| Application: | Liquid with Suspended Solids, Pharmaceutical chemical industry | Place of Origin: | Jiangsu, China |
| Brand Name: | ZHANG | Voltage: | Customization |
| Dimension(L*W*H): | Customization | Power (kW): | 45 kW |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Applicable Industries: | Pharmaceutical and chemical industry | Showroom Location: | None |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Pressure vessel | Product name: | Conical Mixer |
| Function: | Mixer Blender | After-sales Service Provided: | Online support |
| After Warranty Service: | Video technical support | Local Service Location: | None |
| Certification: | GMP/CE/PED/ASME/GB150 |
Products Description
Main Application
This series of conical screw mixers find extensive application in a variety of industries for efficient and homogeneous mixing of different materials. They are commonly utilized in the pharmaceutical, chemical, food processing, and cosmetic industries.
In pharmaceutical manufacturing, conical screw mixers are employed for blending active pharmaceutical ingredients (APIs), excipients, granules, and powders, ensuring uniform distribution and enhancing drug efficacy.
The chemical industry utilizes conical screw mixers for blending dry powders, dyes, pigments, and other additives. These mixers enable the production of consistent and high-quality mixtures.
In the food processing industry, conical screw mixers are employed for mixing flour, spices, additives, and other ingredients, resulting in uniform flavor profiles and textures.
conical screw mixers also find application in the cosmetic industry for blending ingredients like powders, oils, fragrances, and pigments, ensuring consistent product quality.
Overall, the versatile application of conical screw mixers makes them an indispensable tool for achieving efficient and homogeneous mixing across a range of industries, enhancing product quality, and optimizing manufacturing processes.
Working Principle
The vertical powder mixer machine primarily consists of a mixing tank, spiral agitating vanes, and transmission parts. It features two layers of spiral agitating vanes. The outer vanes gather the material from the side towards the center, while the inner vanes separate the material from the center towards the side. This arrangement promotes a convective mixing process inside the tank, allowing the materials to thoroughly blend with each other.
Model | CW-180 | CW-300 | CW-500 | CW-1000 | CW-2000 | CW-3000 | CW-4000 |
Power(Kw) | 1.1 | 1.1 | 2.2 | 4 | 7.5 | 11 | 11 |
Capacity(kg/batch) | 40 | 60 | 100 | 200 | 400 | 600 | 800 |
Total volume | 0.18 | 0.3 | 0.5 | 1 | 2 | 3 | 4 |
Mixing time(min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
Speed(r/min) | 12 | 12 | 12 | 10 | 10 | 8 | 8 |
Custom Service
1. Multifunctional “Three in One” (filtering, washing and drying)
3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Vacuum Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials,
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,
Ti/HC22/Mone11
2. Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3. Design/Calculation Software
➤Scope of business
1. On-site Inspection
2.Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts
Wuxi Zhanghua Pharmaceutical Equipment Co., Ltd has a rich history, having been established in 1976. Our primary focus lies in the research, development, and manufacturing of equipment related to reaction, crystallization, filtration, and drying processes. Over the past four decades, we have continuously advanced our technologies and expertise.
Our engineering equipment caters not only to the pharmaceutical industry but also to other sectors such as fine chemicals, pesticides, new energy, and new materials. We pride ourselves on providing integrated solutions for our clients by offering customized equipment that spans the entire process of reaction, crystallization, filtration, and drying.
