OEM drying equipment in pharmaceutical industry Supplier | Zhanghua

Zhanghua has developed to be a professional manufacturer and reliable supplier of high-quality products. Throughout the whole production process, we strictly implement the ISO quality management system control. Since established, we always adhere to independent innovation, scientific management, and continuous improvement, and provide high-quality services to meet and even exceed customers' requirements. We guarantee our new product drying equipment in pharmaceutical industry will bring you a lot of benefits. We are always standby to receive your inquiry. drying equipment in pharmaceutical industry Today, Zhanghua ranks the top as a professional and experienced supplier in the industry. We can design, develop, manufacture, and sell different series of products on our own combining the efforts and wisdom of all our staff. Also, we are responsible for offering a wide range of services for customers including technical support and prompt Q&A services. You may discover more about our new product drying equipment in pharmaceutical industry and our company by directly contacting us.The product is corrosion resistant. Its metal parts have been treated with surface paint to guard against oxidization and rust.

Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd is reckoned for manufacturing and supplying Industrial Mixing Salt Solution Stainless Steel Crystallization Equipment that is manufactured using supreme quality materials. It turns out that the application of the technology plays an important role in deciding the performance of the product. At present, it can be widely seen in the field(s) of Crystallizers. Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd relentlessly strive for innovations and changes, hoping to lead the industry development and improve our products and services in our unique way. We are committed to being one of the best enterprises in the market.

Products Description

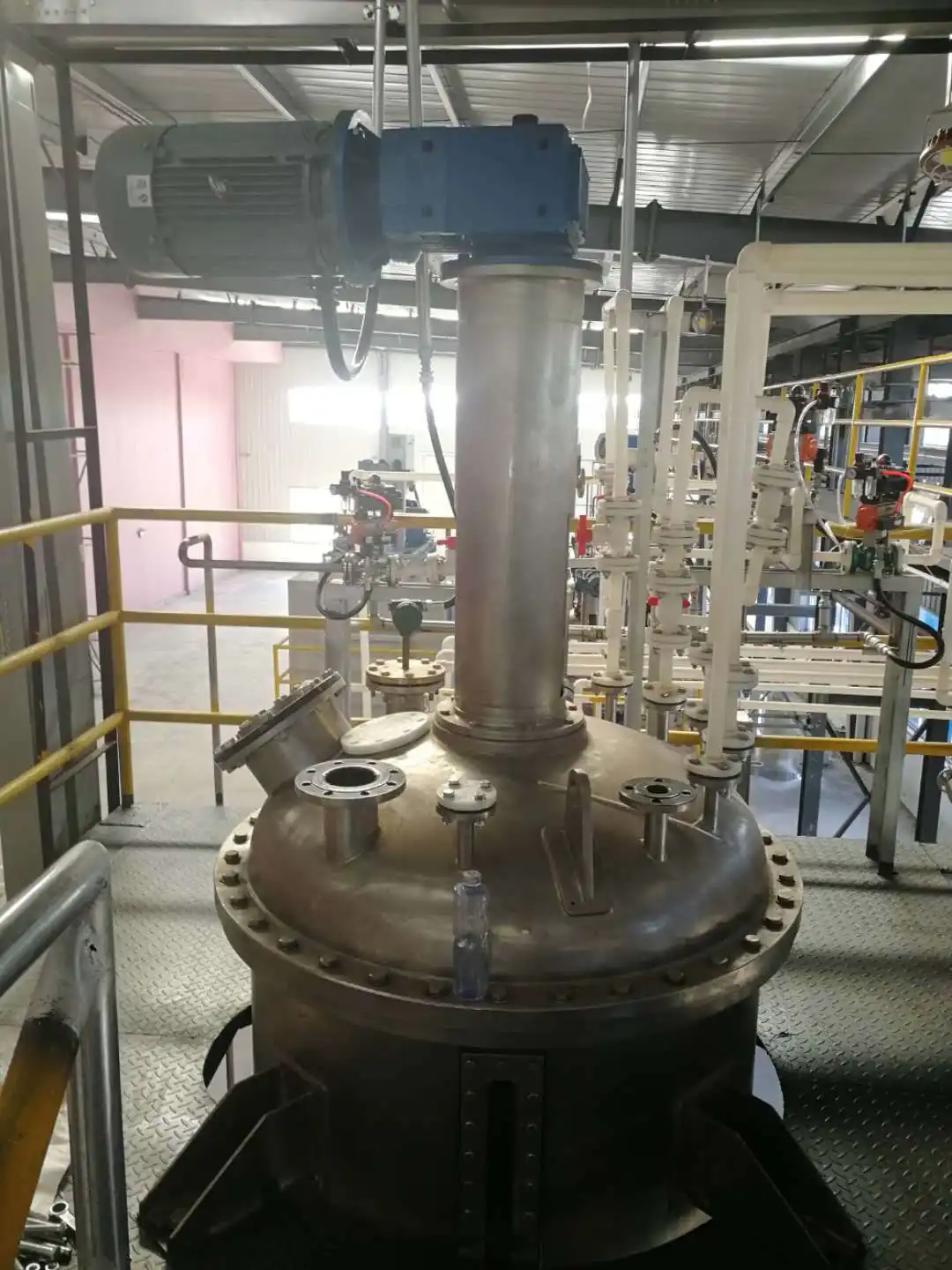

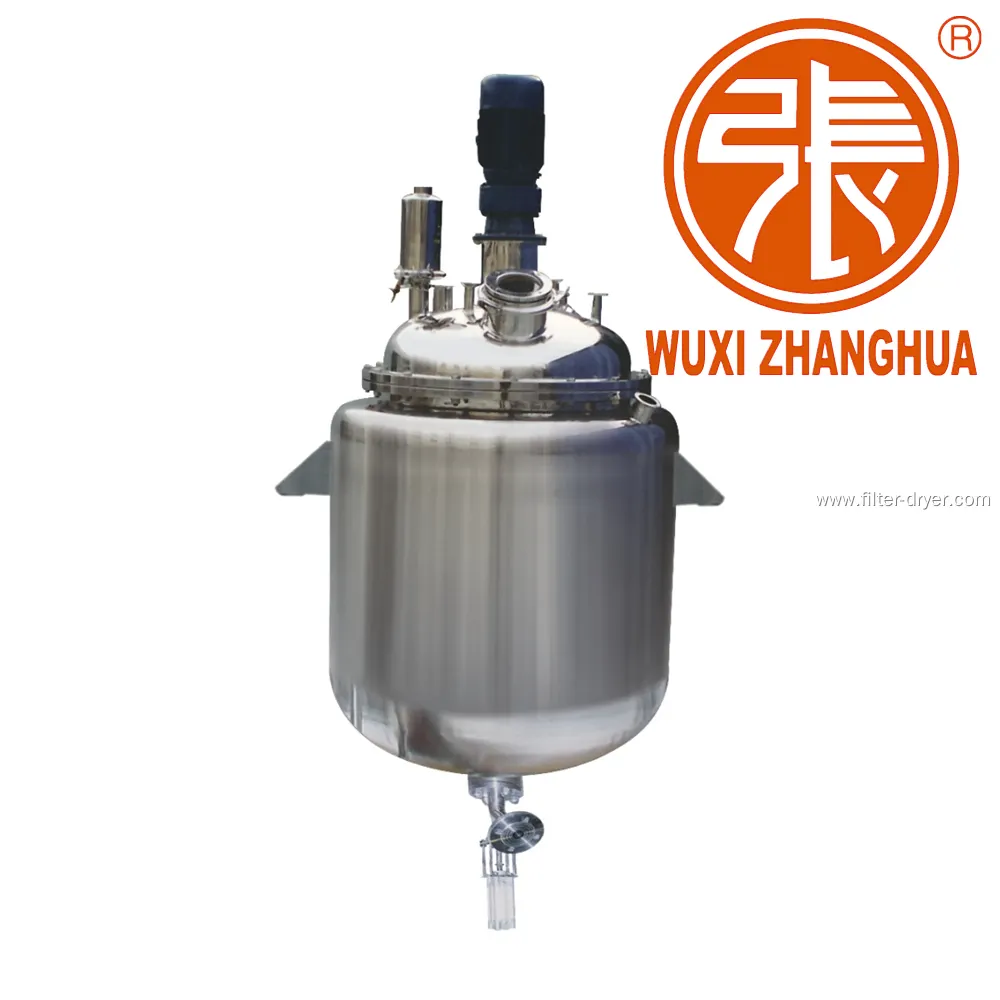

JJ Crystallizing Tank

JJ Crystallizing Tank can be manufactured by SS304, SS316L, Titanium, Hastelloy, PTFE lined or other materials. Its inside wall is treated with electrolytic mirror polishing or mechanical polishing while its outside wall uses SS304 full-welding structure, and its outside surface is treated with mirror polishing or matte polishing.0.2μm water delivery ventilation filter is installed on the crystallization tank. The crystallization tank can endure 121℃ high temperature sterilization, equipped with sanitary pressure meter. The outside connection of the tank uses sanitary rapid open connector. The crystallization tank is equipped with temperature monitoring device, 2 sight mirrors, cleaning ball and nitrogen inlet. The shaft seal uses special sanitary mechanical seal to protect the materials from pollution. The crystallization tank can use frequency conversion speed control device, then the rotation speed of mixing shaft has a wide adjustment range.

Technology Parameters

Specifications(L)	Diameter Of Internal Tank(mm)	Diameter Of Jacket(mm)	Heat Preservation Layer(mm)	Motor Power(kw)	Rotation Speed Of Blending
30	400	500	600	0.55-1.1	60-120
50	500	600	700	0.55-1.1	60-120
...	...	...	...	...	...
32000	3000	3200	2400	37	50-120

Design / Calculation Software

You May Like

ANFD Heat Exchanger Chemical Reactor Double-cone Dryer

Custom Service

➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)

2. Crystallizing Tank, Reaction Kettle
3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Vacuum Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,
Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤Scope of business
1. On-site Inspection
2.Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts

Company Profile
