After years of solid and rapid development, Zhanghua has grown into one of the most professional and influential enterprises in China. crystallizer manufacturer If you are interested in our new product crystallizer manufacturer and others, welcome you to contact us.It has good strength. Its elements are strong enough to sustain all the forces it is designed for so that it is not damaged or permanently deformed during its lifetime.

What you are witnessing here is the excellent Reactors,Drying Equipment,Mixing Machine,Crystallizer,Agitated Nutsche Filter Dryer of Wuxi Zhanghua Pharmaceutical Equipment Co.,Ltd.It is expected that it will lead the industry trend. W-Type Crystallization Tank With Insulation, Jacket And Vigorous Agitation is the result of high-end technologies.With the continual of enlarging of its application range in Crystallizers, its demands are increasing rapidly every year. With a comprehensive understanding of the company management system, our employees can better realize their duties, which contributes to higher-efficiency manufacturing and more professional services. Our goal is to be a leading company in the global market.

Products Description

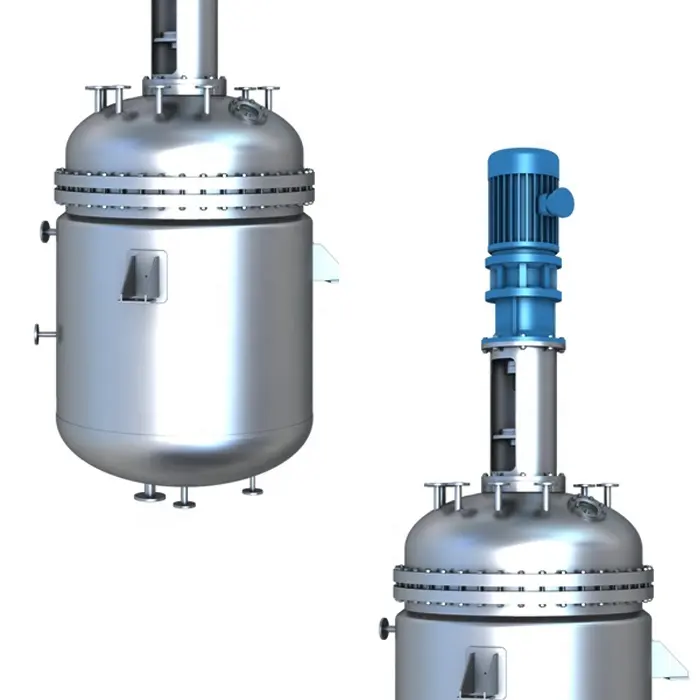

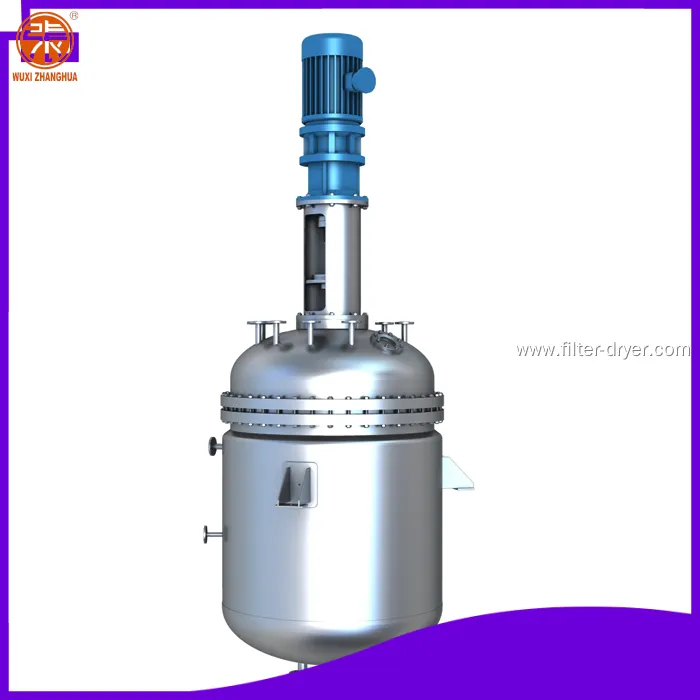

W-Shape Crystallizer

The crystallization tank is used for mixing and blending materials, cooling and freezing, and finished products crystallizing in pharmaceutical industry. The crystallizing tank is also widely used in dairy, food, chemical, beverage and other industries. It can be made from SS304, SS316L, titanium, Hastelloy, PTFE lined or other material. The inside wall is treated with electrolytic mirror polishing or mechanical polishing while the outside wall uses SS304 full-welding structure to preserve heat, and the outside surface is treated with mirror polishing or matte polishing.

Summary

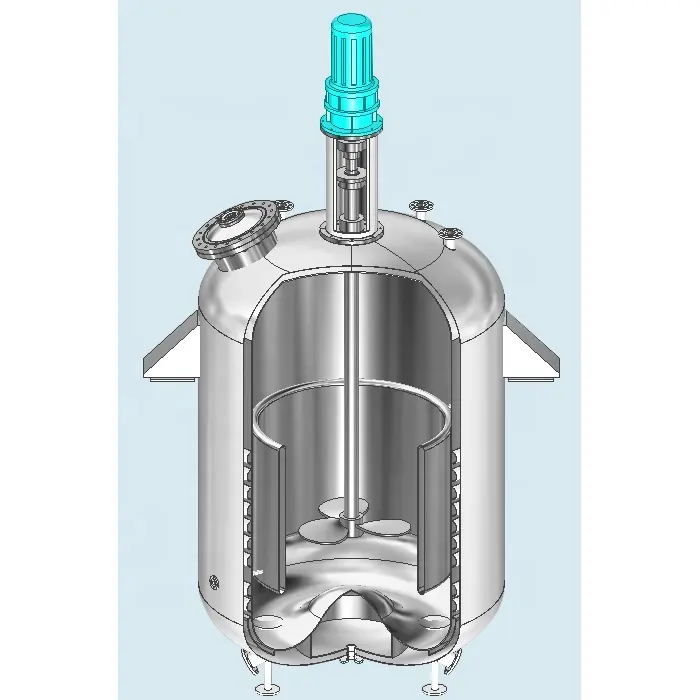

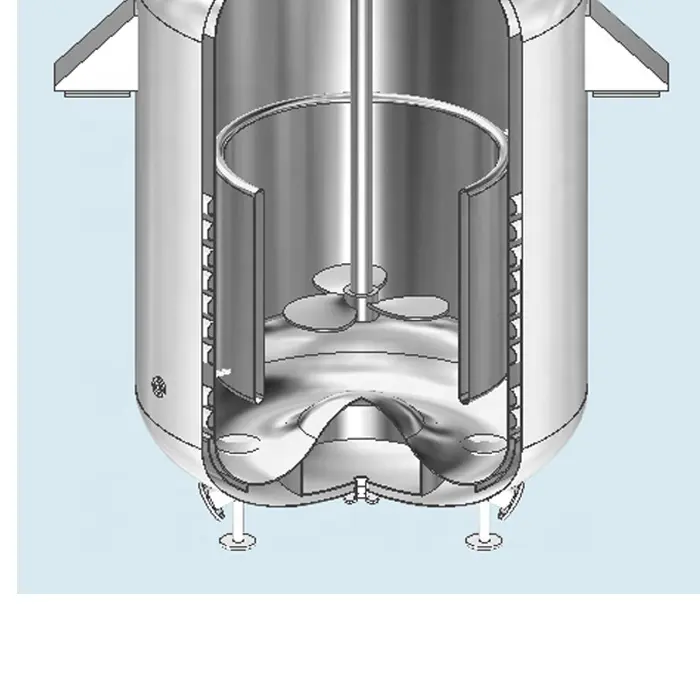

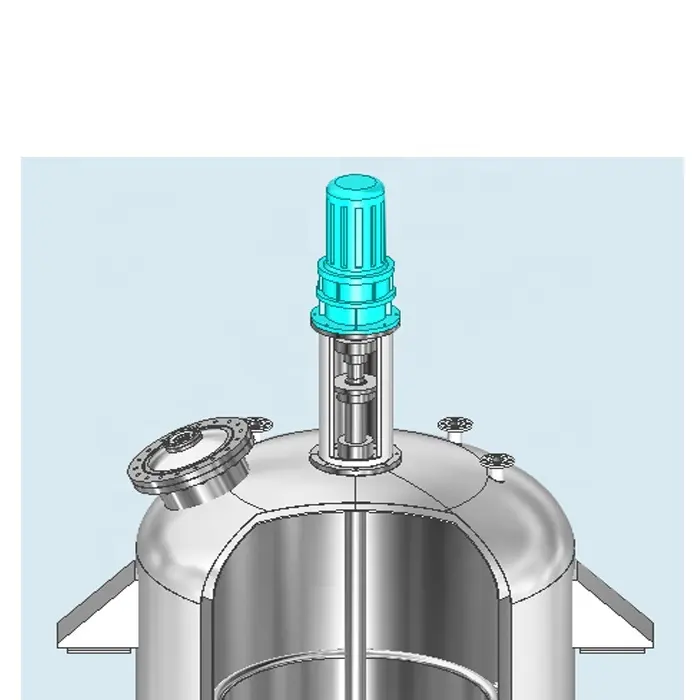

In order to improve the inside structure of traditional crystallization tank, the standard oval head is replaced by the W-shaped head in the design. The combination of W-shaped head and the air cylinder changes internal flow flied forms, and realizes good diversion effect, ensure that materials are fully mixed, avoid local too high solute saturation generated that causes bad influence on crystallizing effect, and the air cylinder structure is additionally provided in the tank. Temperature control of the materials in the tank is realized through the hot fluid passing the air cylinder and jacket, instead of temperature control only by the jacket in the traditional crystallization tank. This kind of joint control from inside and outside effectively ensures uniformity of material temperature and improves the crystallizing effect. The combination of W-shaped head and the air cylinderchanges internal flow flied forms, and realizes good diversion effect, ensure that materials are fully mixed, avoid local too high solute saturation generated that causes bad influence on crystallizing effect. Meanwhile, the even flow field can obviously improve the change of load carried by the blades, so the risk of damaging the mixing shaft is effectively reduced and the final crystal form is more uniform.

Technology Parameters

Specification (L)	Diameter  (mm)	High (mm)	Pressure in the tank (MPa)	Pressure in the jacket  (MPa)	Motor power (kw)	Rotation speed of blending
100	400	2000	0.2	0.3	0.55	50-120
200	500	2330	0.2	0.3	0.75	50-120
500	700	2650	0.2	0.3	1.1	50-120
...	...	...	...	...	...	...
20000	2300	2900	0.2		30	50-120

Design / Calculation Software

You May Also Like

ANFD Reactor Paddle Dryer Storage Tank

Custom Service

➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)

2. Crystallizing Tank, Reaction Kettle

3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,

Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤scope of business
1. On-site Inspection
2. Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts
