What Is a Industrial Dryer and What Are Its Types?

2024-08-16

Zhanghua Dryer

What Is an Industrial Dryer？

An industrial dryer is a specialized piece of process equipment designed to remove moisture, solvents, or volatile components from solid, liquid, or slurry materials through thermal, mechanical, or vacuum‑based methods. Unlike household dryers, industrial dryers are built for large‑scale, continuous or batch production, with strict compliance to safety, hygiene, and performance standards such as FDA, GMP, ASME, CE, PED, ATEX, and ISO 9001. They are widely used in pharmaceuticals, fine chemicals, pesticides, new energy, new materials, electronics, and food processing, ensuring products meet moisture content specs, improve stability, and support downstream processing like filtration, crystallization, and packaging.

Key industrial dryer features:

High efficiency, large capacity, and stable performance
Compatibility with corrosive, toxic, flammable, or explosive materials
Customizable for closed systems, high vacuum, and full automation
Compliance with EHS, clean production, and regulatory audit requirements

Common Types of Industrial Dryers

1. Vacuum Dryers

Ideal for heat‑sensitive, oxygen‑sensitive, or toxic materials; operate under reduced pressure to lower boiling points.

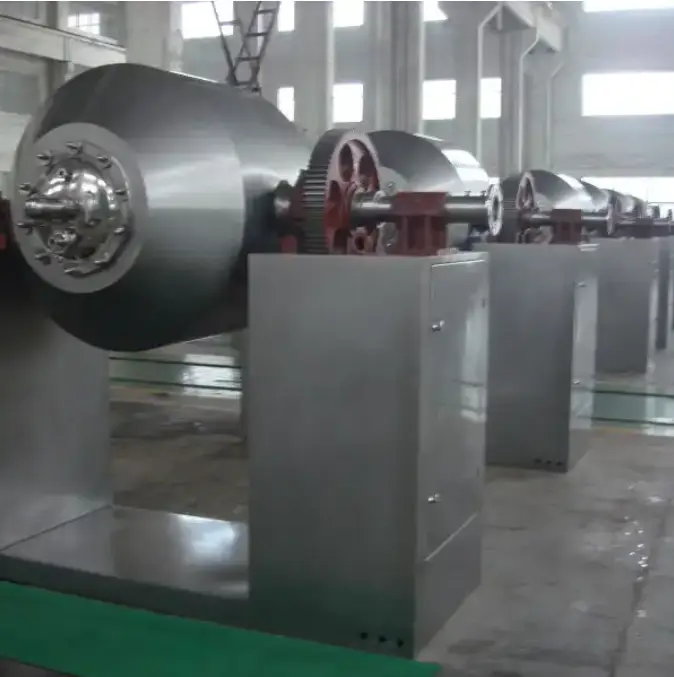

Double Cone Vacuum Dryer: Rotating conical vessel for uniform drying; common in pharma and fine chemicals.
Vacuum Paddle Dryer: Internal agitator enhances heat transfer; suitable for pastes and filter cakes.
Agitated Nutsche Filter Dryer (ANFD): Integrates filtration, washing, and drying in one closed unit; widely used in API manufacturing.

2. Spray Dryer

A spray dryer is a continuous drying equipment that atomizes liquid materials (solutions, emulsions, slurries) into tiny droplets and quickly dries them in hot air to form powder or fine particles.
It features an extremely short drying time, usually only a few seconds, making it ideal for heat-sensitive materials such as milk powder, protein, herbal extracts, dyes, and chemical intermediates. The finished product has good fluidity, solubility, and uniform particle size, with no need for subsequent crushing and screening. It is widely used in food, beverage, pharmaceutical, and chemical industries for one-step liquid-to-powder production.

3. Rotary Dryer

Also known as a rotary drum dryer, it is a typical high-capacity continuous drying equipment. Materials move forward along the inclined rotating cylinder, fully contacting hot air or heated inner walls to achieve rapid dehydration.
Vacuum rotary dryer has strong adaptability and can handle granular, powdery, blocky, and even sticky materials such as minerals, slag, sand, coal, chemical crystals, and agricultural products. Rotary dryers are durable, easy to operate, and suitable for large-scale industrial production lines with high throughput requirements. They are widely used in mining, building materials, chemical, and feed processing industries.

4. Air Flow Dryer

Air flow dryer, also called pneumatic dryer, uses high-speed hot air flow to suspend and transport wet materials while completing evaporation and drying in a very short time.
Suitable for granular, powdery, and easily dispersed materials with low adhesion, such as starch, flour, protein, chemical powder, and lightweight crystalline materials. It has a compact structure, small footprint, high thermal efficiency, and fast drying speed. The whole process is closed, reducing dust pollution and ensuring product cleanliness. It is widely used in light industry, food, chemical, and pharmaceutical industries for small-particle material drying.

How to Choose the Right Industrial Dryer

Material properties: heat sensitivity, particle size, viscosity, corrosiveness
Production mode: batch or continuous
Moisture target and capacity
Compliance: FDA, GMP, ATEX, ASME, CE, PED
Space, energy use, and EHS requirements

Why Choose Wuxi Zhanghua Industrial Dryers

With 48+ years expertise since 1976, Wuxi Zhanghua Pharmaceutical Equipment Co., Ltd. is a leading filtration‑drying systems and industrial dryer manufacturer. Our dryers are widely applied in pharma, fine chemicals, new energy, and pesticides, supporting audits by Pfizer, Novartis, J&J, BASF, Bayer, and more. We provide custom design, full validation, and global after‑sales service to meet your strict process needs.

FAQ

1. What is the working principle of a vacuum dryer?
Vacuum dryers function by reducing the atmospheric pressure around the product using a vacuum pump. This lowered pressure causes water or solvent molecules to evaporate at much lower temperatures than in traditional hot-air drying. The process typically involves heating the material—often via conduction or radiation—within a sealed chamber, with the vapor being removed and, in many cases, condensed and collected.

2.What are the common applications of vacuum dryers?
Vacuum dryers are extensively used in the pharmaceutical (API drying, sterilization), food and agricultural (drying fruit purees, sensitive additives), chemical (resins, pastes), and metal manufacturing (drying delicate parts) industries.

3.What is the best type of industrial dryer?
The choice depends on the material. Rotary dryers are best for high-volume solid materials, while refrigerated air dryers suit general compressed air needs (cooling air to 3°C to remove moisture). Adsorption dryers are best for, or required for, extremely low dew points (down to -70°C).

4.How do you maintain an industrial dryer?
Key maintenance tasks include cleaning the lint screen daily, checking the drum and internal surfaces for buildup or corrosion, inspecting fans and burner systems, and ensuring proper bearing lubrication.
